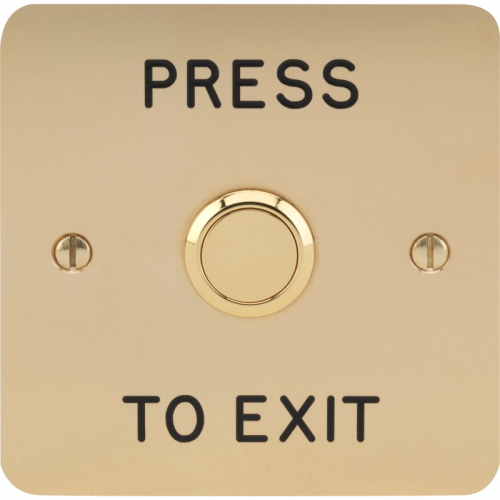

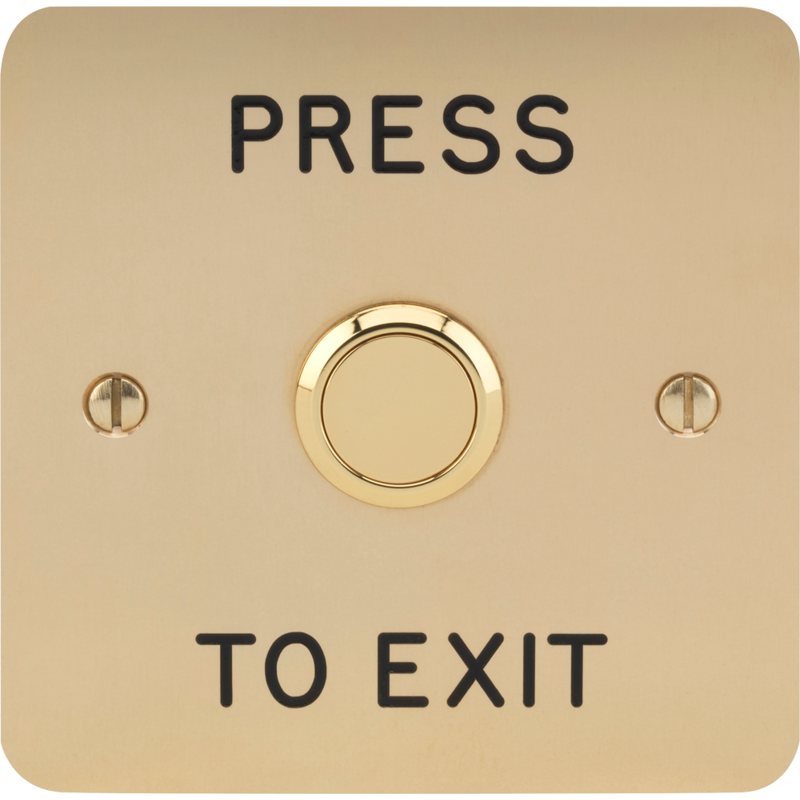

3E0658-4-E-PTE, VANDAL RESISTANT 19mm mount 1 Gang 2mm Brass plate Engraved "Press to Exit"

3E0658-4-E-PTE, VANDAL RESISTANT 19mm mount 1 Gang 2mm Brass plate Engraved "Press to Exit"

  • Brand:3E Security
  • Product Code:3E0658-4-E-PTE
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


3E0658-4-E-PTE, VANDAL RESISTANT 19mm mount 1 Gang 2mm Brass plate Engraved ""Press to Exit"" IP67 Ingress protection Momentary contact 1 x N/O, 1 x N/C, 1 x C Silver contacts

VANDAL RESISTANT BUTTON

  • IP67 Ingress protection as per IEC 60529
  • Momentary contact
  • 1 x Normally Open & 1 x Normally Closed Circuit
  • Silver contacts
  • -30 Deg. C to +70 Deg. C operating range
  • IK10 Impact resistance as per IEC62262
  • 2mm protrusion from panel
  • CE Declaration of conformity
  • Solid 2mm brass switch plate
  • Legends engraved as standard
  • CB, UL, C UL, CCC Approbations

DESCRIPTION

This vandal resistant button is highly suitable for applications in harsh environments. Panel sealed to IP67 (front side actuation area) and IK07 shock resistance.

The switch has a momentary contact providing one normally open, one normally closed and one common terminal (terminals are soldered with 16/0.2mm and then a chloroprene sleeve is positioned to increase protection).

The switch has a machined return which accommodates the neoprene o ring to seal the unit to the panel without visible signs of the washer.

A panel projection of just 1.7mm increases the resistance to attack.

Material of switch plate is 2mm solid polished brass.

SPECIFICATION:-

ELECTRICAL
Contact Resistance (initial) <50mΩ
Life 100,000 cycles of operation
  500 VDC at min. 10Ω according to IEC 60512-2
  2500 VAC, 50 Hz 1 min. between life terminals and ground,1000 VAC, 50Hz 1 min. between life terminals
  0.7A @ 24Vdc
MECHANICAL
Life (nominal) 1 Mio. cycles of operation
Operating Force 6N
Travel 2.5mm
ENVIRONMENTAL
Contact Material Silver alloy
Shock max. 500m/s2 according to IEC 60068-2-27
Operating Temperature Range -30°C to +70°C
Ingress Protection IP67, as per IEC 60529
Impact Rating IK 10, as per IEC 62262
Actuator Material Polyamide 66 (PA66)
Body Material Brass nickel-plated or galvanically gold-plated
MATERIAL
  Solid 2mm brass switch plate

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
