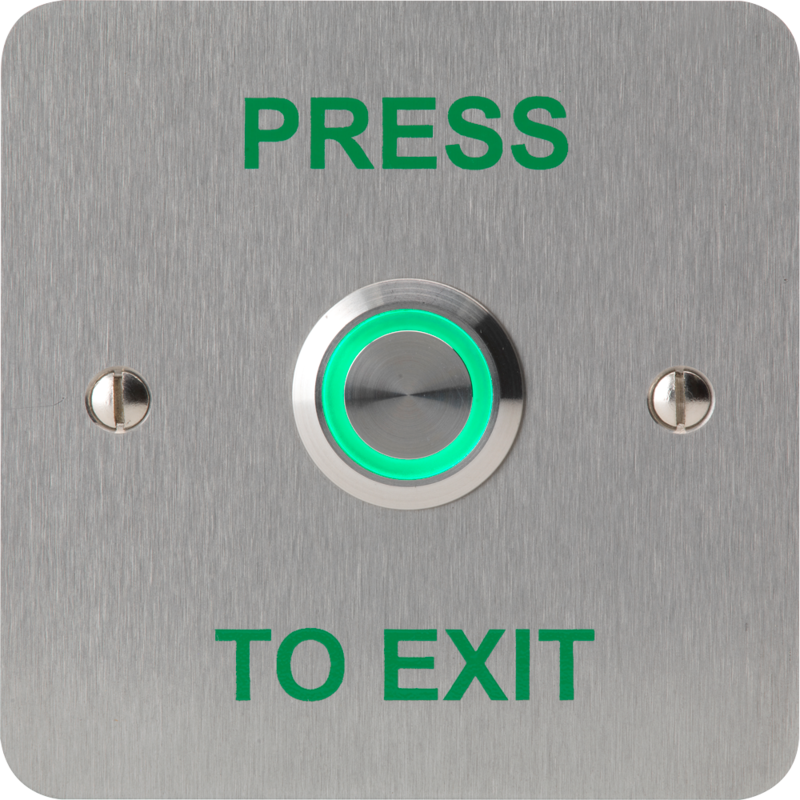

3E0658G-1-PTE, VANDAL RESISTANT 19mm mount 1 Gang SSS "Press to Exit"
- Brand:3E Security
- Product Code:3E0658G-1-PTE
- Availability:Please Call or Email to Checkout
3E0658G-1-PTE, VANDAL RESISTANT 19mm mount 1 Gang SSS ""Press to Exit"" IP67 Ingress protection 12-24Vdc halo illumination Momentary contact 1 x N/O, 1 x N/C, 1 x C Silver contacts
VANDAL RESISTANT WITH ILLUMINATION
- IP67 Ingress protection as per IEC 60529
- 12-24Vdc halo illumination
- Momentary contact
- 1 x Normally Open, 1 x Normally Closed & 1 x Common Circuit
- -30 Deg. C to +70 Deg. C operating range
- IK10 Impact resistance as per IEC62262
- Silver contacts
- 2mm protrusion from panel
- CE Declaration of conformity
- CB, UL, C UL, CCC Approbations
SPECIFICATION:-
ELECTRICAL
| Electrical strength | 2500 VAC, 50 Hz 1 min. between life terminals and ground,1000 VAC, 50Hz 1 min. between life terminals |
| Contact Resistance (initial) | <50mΩ |
| Switch rating DC service categorie DC-13 | 0.7A @ 24Vdc |
| Insulation Resistance | 500 VDC at min. 10Ω according to IEC 60512-2 |
| Life | 100,000 cycles of operation |
| Illumination | 10mA @ 24Vdc |
MECHANICAL
| Travel | 2.5mm |
| Operating Force | 6N |
| Life (nominal) | 1 Mio. cycles of operation |
ENVIRONMENTAL
| Shock | max. 500m/s2 according to IEC 60068-2-27 |
| Operating Temperature Range | -30°C to +70°C |
| Ingress Protection | IP67, as per IEC 60529 |
| Impact Rating | IK 10, as per IEC 62262 |
| Contact Material | Silver alloy |
| Terminal Housing | Polyamide 66 (PA66) |
| Housing | Stainless steel polished or brushed |
MATERIAL
| Plate material | Grade 304 DP1 stainless steel (2mm) |
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
