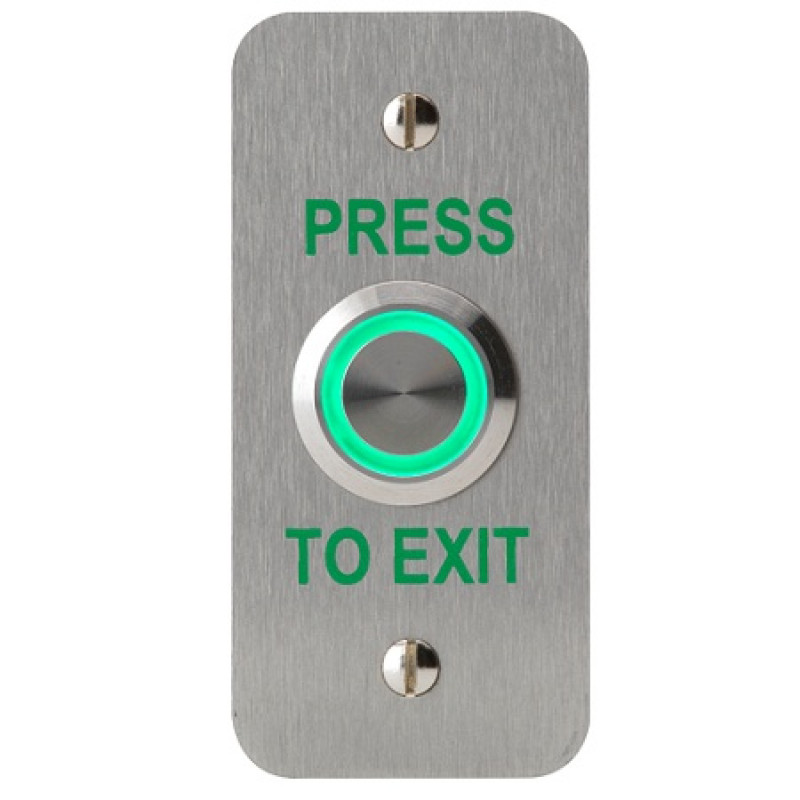

3E0658G-1NS-PTE, VR 19mm Mount Narrow Stile SSS "Press to Exit

3E0658G-1NS-PTE, VR 19mm Mount Narrow Stile SSS "Press to Exit

Key Features:

• IP67 Ingress protection as per IEC 60529
• 12-24Vdc halo illumination
• Momentary contact
• 1 x Normally Open, 1 x Normally Closed & 1 x Common Circuit
• -30 Deg. C to +70 Deg. C operating range
• IK10 Impact resistance as per IEC62262
• Silver contacts
• 2mm protrusion from panel
• CE Declaration of conformity
• CB, UL, C UL, CCC Approbations

Specifications:

ELECTRICAL:

• Contact Resistance (initial): <50mΩ
• Life: 100,000 cycles of operation
• Electrical strength: 2500 VAC, 50 Hz 1 min. between life terminals and ground,1000 VAC, 50Hz 1 min. between life terminals
• Insulation Resistance: 500 VDC at min. 10Ω according to IEC 60512-2
• Illumination: 10mA @ 24Vdc
• Switch rating DC service categorie DC-13: 0.7A @ 24Vdc

MECHANICAL:

• Life (nominal): 1 Mio. cycles of operation
• Operating Force: 6N
• Travel: 2.5mm

ENVIRONMENTAL:

• Contact Material: Silver alloy
• Terminal Housing: Polyamide 66 (PA66)
• Housing: Stainless steel polished or brushed
• Shock: max. 500m/s2 according to IEC 60068-2-27
• Operating Temperature Range: -30°C to +70°C
• Ingress Protection: IP67, as per IEC 60529
• Impact Rating: IK 10, as per IEC 62262

MATERIAL:

• Actuator: Grade 304 DP1 stainless steel (2mm)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
