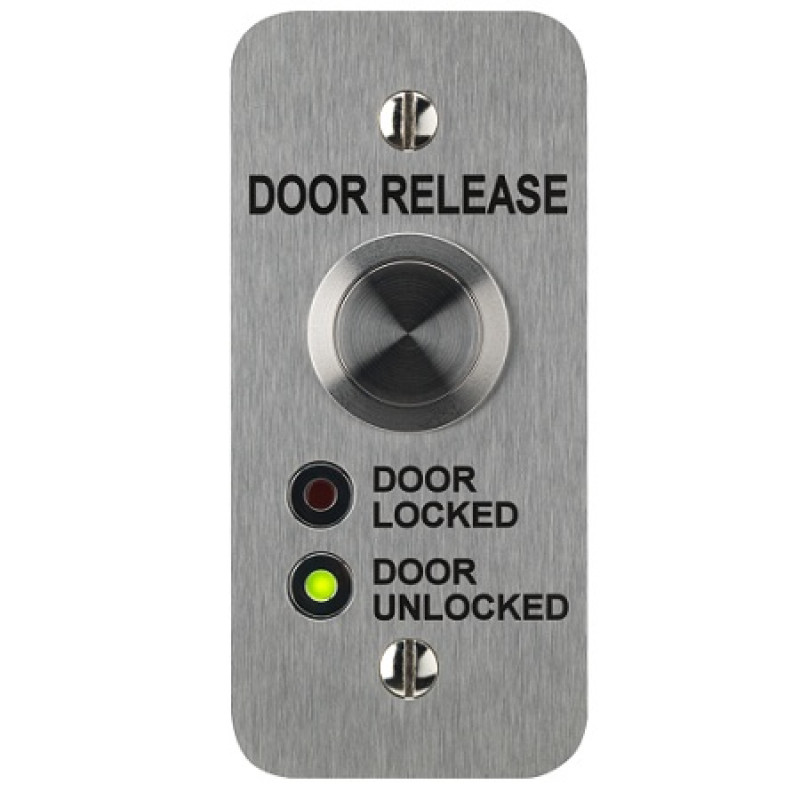

3E0658N-1NS-L-LE, VR 19mm Mount Narrow Stile SSS "DR" "DU", "DL"

3E0658N-1NS-L-LE, VR 19mm Mount Narrow Stile SSS "Door Release" and "Door Unlocked", "Door Locked"

Key Features:

• IP67 Ingress protection
• Momentary contact
• Silver contacts
• -25 Deg. C to +85 Deg. C operating range
• Impact rating: IK07
• Short actuation travel (0.8mm)
• 1.7mm protrusion from panel

Specifications:

ELECTRICAL:

• Life: 0.2 million actuations at Rated Switching Capacity
• Insulation Resistance: >100MΩ
• Contact Resistance (initial): <30mΩ
• Rated Switching Capacity: 750W
• Switching Current: max. 5 / 3 A
• Switching Voltage: max. 125 / 250 VAC

MECHANICAL:

• Operating Force: 4.5N
• Life (nominal): 1.5 million actuations
• Contact Bounce: <5ms
• Travel: 0.8mm

ENVIRONMENTAL:

• Operating Temperature Range: -25°C to +85°C
• Ingress Protection: IP 67
• Impact Rating: IK 07
• Contact Material: Ag
• Housing: Stainless steel
• Actuator Material: Stainless steel

MATERIAL:

• Plate material: Grade 304 DP1 stainless steel (2mm)
