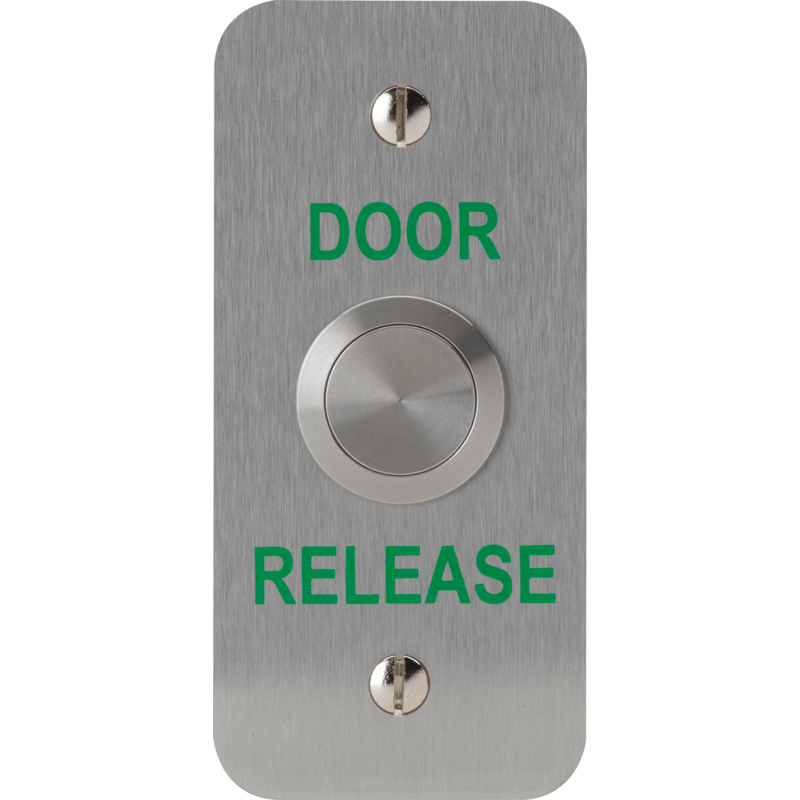

3E0658NDP-1NS-DR, VANDAL RESISTANT 19mm mount Narrow Stile SSS "Door Release"

3E0658NDP-1NS-DR, VANDAL RESISTANT 19mm mount Narrow Stile SSS "Door Release"

  • Brand:3E Security
  • Product Code:3E0658NDP-1NS-DR
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


3E0658NDP-1NS-DR, VANDAL RESISTANT 19mm mount Narrow Stile SSS ""Door Release"" IP67 Ingress protection Double pole / double throw (N/O, N/C, C x 2) Momentary contact Silver contacts

VANDAL RESISTANT BUTTON

  • IP67 Ingress protection
  • Momentary contact
  • Double pole / double throw
  • Silver contacts
  • -25 Deg. C to +85 Deg. C operating range
  • Impact rating: IK07
  • Short actuation travel (0.8mm)
  • 1.7mm protrusion from panel

SPECIFICATION

ELECTRICAL
Life 0.2 million actuations at Rated Switching Capacity
Insulation Resistance >100MΩ
Contact Resistance (initial) <30mΩ
Rated Switching Capacity 750W
Switching Current max. 5 / 3 A
Switching Voltage max. 125 / 250 VAC
MECHANICAL
Operating Force 4.5N
Life (nominal) 1.5 million actuations
Contact Bounce <5ms
Travel 0.8mm
ENVIRONMENTAL
Operating Temperature Range -25°C to +85°C
Ingress Protection IP 67
Impact Rating IK 07
Contact Material Ag
Housing Stainless steel
Actuator Material Stainless steel
MATERIAL
Plate material Grade 304 DP1 stainless steel (2mm)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
