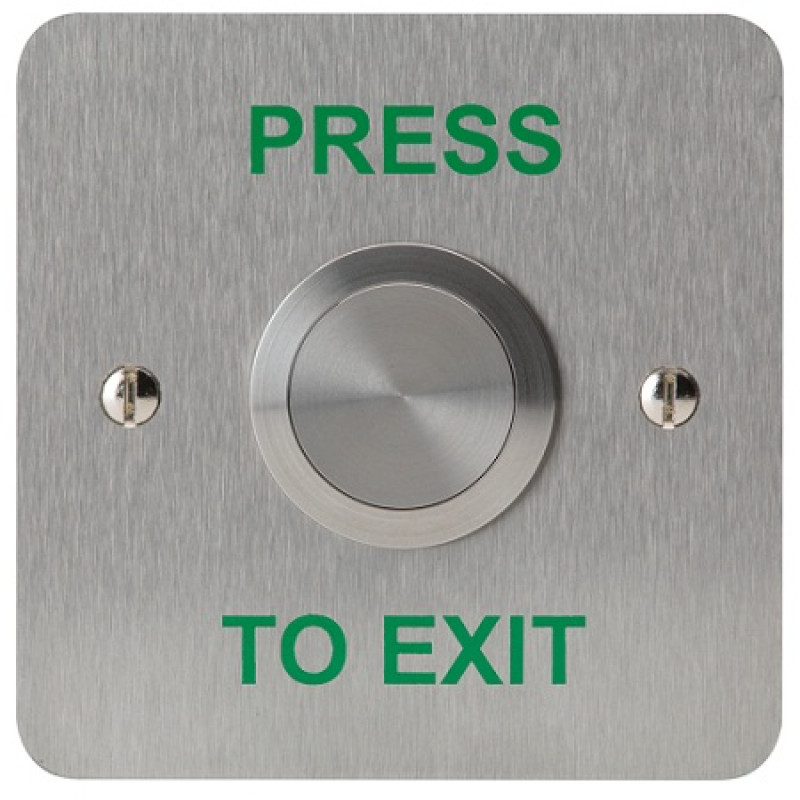

3E0659N-1PTE, VR 30mm Mount 1 Gang SSS "Press to Exit"

3E0659N-1PTE, VR 30mm Mount 1 Gang SSS "Press to Exit"

Key Features:

• IP67 Ingress protection
• Momentary contact
• N/O, N/C, C
• Silver contacts
• -25 Deg. C to +85 Deg. C operating range
• Impact rating: IK07
• Short actuation travel (0.8mm)
• 1.7mm protrusion from panel

Description:

The 3E0659N-1PTE vandal resistant button is highly suitable for applications in harsh environments. Panel sealed to IP67 (front side actuation area) and IK 07 shock resistance. Both switch body and switch actuator are machined precisely from quality stainless steel to stringent tolerances. The switch has a machined return which accommodates the neoprene “o” ring to seal the unit to the panel without visible signs of the washer.

A panel projection of just 2.05mm increases the resistance to attack.

The switch has a momentary contact providing one normally open, one normally closed and one common terminal (terminals are soldered with 16/0.2mm and then a chloroprene sleeve is positioned to increase protection).

Product is supplied flush mount, complete with fixings and a single gang, 35mm galvanised steel electrical backbox.

Specifications:

ELECTRICAL:

• Life: 0.2 million actuations at Rated Switching Capacity
• Insulation Resistance: >100MΩ
• Contact Resistance (initial): <30mΩ
• Rated Switching Capacity: 750W
• Switching Current: max. 5 / 3 A
• Switching Voltage: max. 125 / 250 VAC

MECHANICAL:

• Operating Force: 4.5N
• Life (nominal): 1.5 million actuations
• Contact Bounce: <5ms
• Travel: 0.8mm

ENVIRONMENTAL:

• Operating Temperature Range: -25°C to +85°C
• Ingress Protection: IP 67
• Impact Rating: IK 07
• Contact Material: Ag
• Housing: Stainless steel
• Actuator Material: Stainless steel

MATERIAL:

• Grade 304 DP1 stainless steel (2mm)

For more details, please refer with our attached datasheet.
