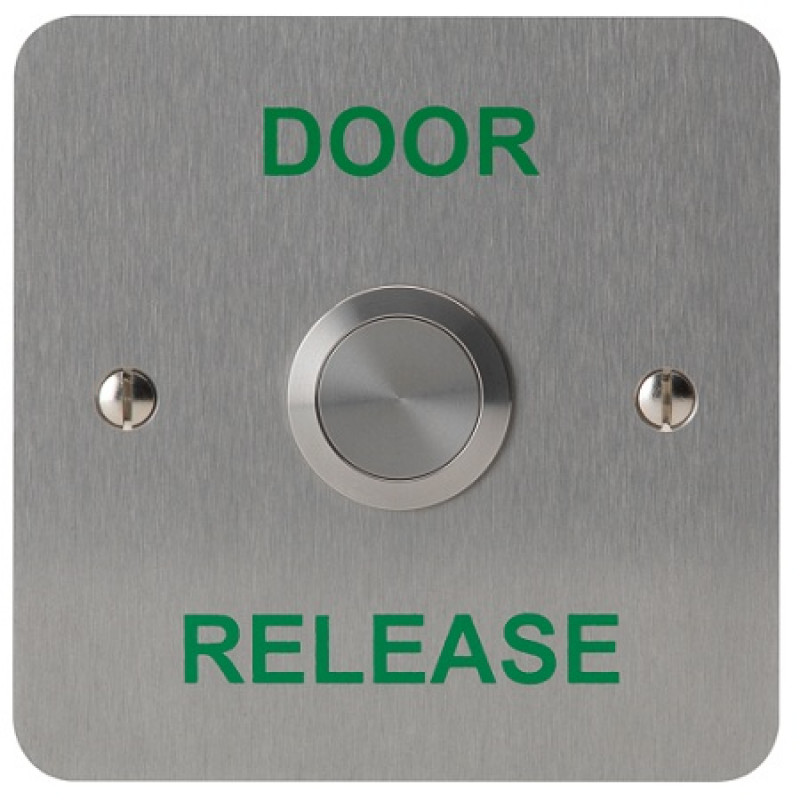

3E0688-1DR, VR 22mm Mount 1 Gang SSS "Door Release"

3E0688-1DR, VR 22mm Mount 1 Gang SSS "Door Release"

  • Brand:3E Security
  • Product Code:3E0688-1DR
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


3E0688-1DR, VR 22mm Mount 1 Gang SSS "Door Release"

Key Features:

  • IP67 Ingress protection
  • Momentary contact
  • N/O, N/C, C
  • -25 Deg. C to +85 Deg. C operating range
  • Impact rating: IK07
  • Short actuation travel (0.8mm)
  • 1.7mm protrusion from panel

Specifications:

ELECTRICAL:

  • Life: 0.2 million actuations at Rated Switching Capacity
  • Insulation Resistance: >100MΩ
  • Contact Resistance (initial): <30mΩ
  • Rated Switching Capacity: 750W
  • Switching Current: max. 5 / 3 A
  • Switching Voltage: max. 125 / 250 VAC

MECHANICAL:

  • Operating Force: 4.5N
  • Life (nominal): 1.5 million actuations
  • Contact Bounce: <5ms
  • Travel: 0.8mm

ENVIRONMENTAL:

  • Operating Temperature Range: -25°C to +85°C
  • Ingress Protection: IP 67
  • Impact Rating: IK 07
  • Contact Material: Ag
  • Housing: Stainless steel
  • Actuator Material: Stainless steel

MATERIAL:

  • Plate material: Grade 304 DP1 stainless steel (2mm)

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
