CDV (GF45) Traditional door loop, 45cm
- Brand:CDVI
- Product Code:GF45
- Availability:Please Call or Email Us to Check Availability
CDV (GF45) Traditional door loop, 45cm
The range of door loops from CDVI offer a safe and secure method of transfering cables from a fixed point, such as door frame onto the door leaf.
The range varies from the economical “Flex” through to the CDL concealed unit. All models have a metal loop for better protection, and all have a minimum internal diameter of 7mm which is sufficient to handle the most common cables used in door locking/control.

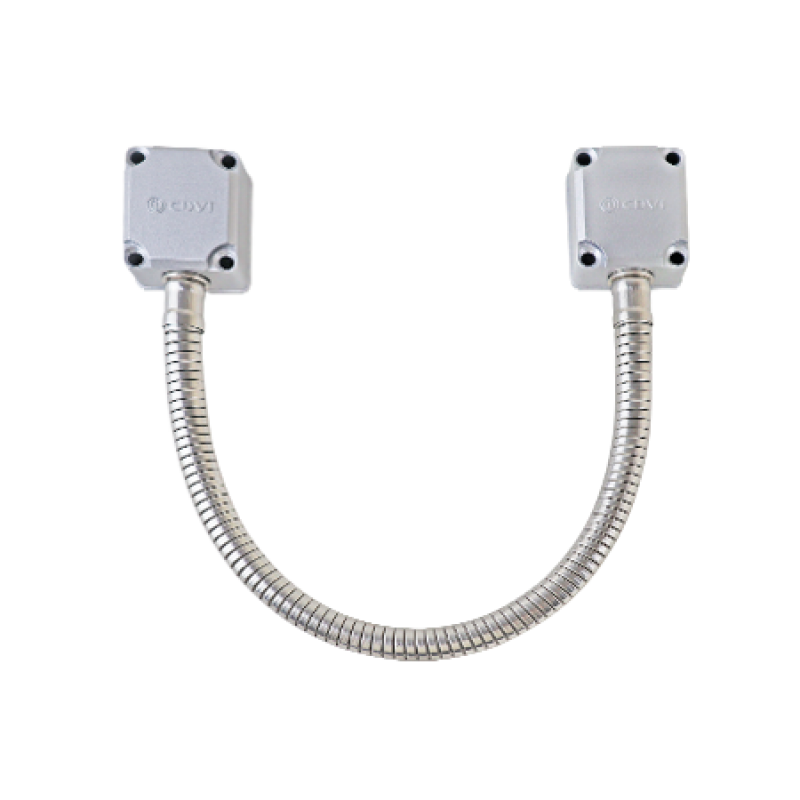

The GF45 is the traditional door loop, square aluminium ends with 4 fixing holes per end. This model is still the most widely used in the market.
- 45cm
- Cable/power management
- Easy to install
- 9mm internal diameter
- Economical and vandal resistant
TECHNICAL INFORMATION:
- Ends: Zamak® cast aluminium
- Fixings: visible
- Length: 45cm
- Diameter loop: external = 13mm; internal = 9mm
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
