DA123/SBZR/BLACK, Surface Mount, Normally Open with Buzzer

DA123/SBZR/BLACK, Surface Mount, Normally Open with Buzzer

  • Brand:Dantech
  • Product Code:DA123/SBZR/BLACK
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

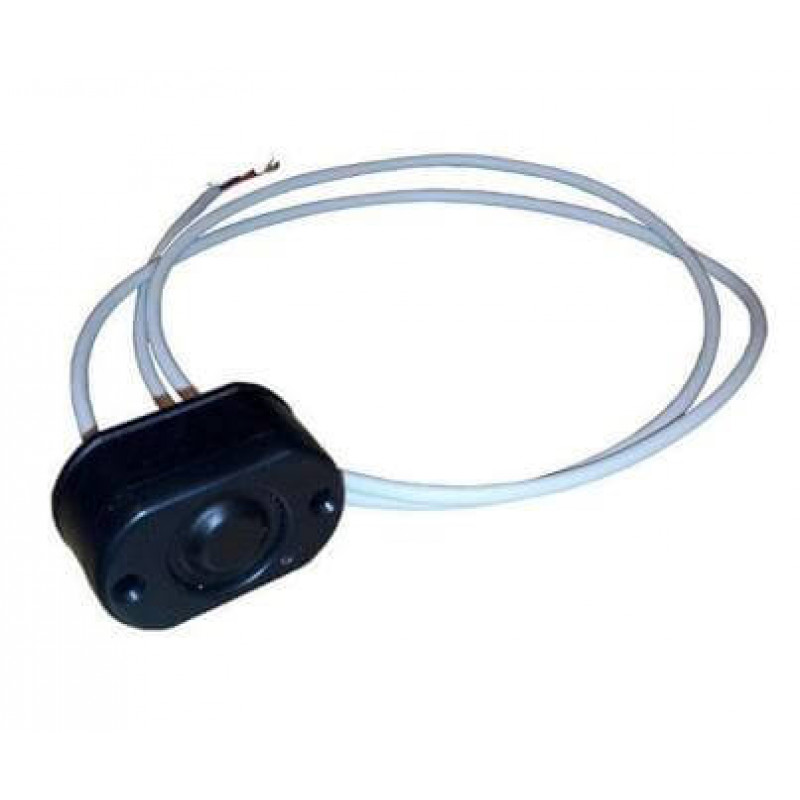

Dantech, DA123/SBZR/BLACK, Surface Mount, Normally Open with Buzzer

It is a range of highly water-resistant final exit knobs using a magnetic dry and sealed slide switch. The diaphragm of the push button is a soft molding and there is no metal spring to corrode or break. The push button has momentary operation and is available with flush or surface mounting.

Connections are made via a full white lead wire of one meter at four knots. The built-in version is installed in a hole of 19mm in diameter and 30mm deep. Surface mounted versions are supplied with a neoprene gasket and zinc plated hardened steel fixing screws.

Available either with "normally open" circuit being closed, or "closed circuit" being open.

Key Features:

  • Breaking capacity 30V DC 100mA
  • Versions with indicator light available
  • Versions with flush or surface mounting available
  • Versions with self-protection loop available

For more details, please refer with our attached datasheet.
