DA343FRS, Audio Visual Flush Mounting, Ranom Key, Silent on shunt

DA343FRS, Audio Visual Flush Mounting, Ranom Key, Silent on shunt

  • Brand:Dantech
  • Product Code:DA343FRS
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

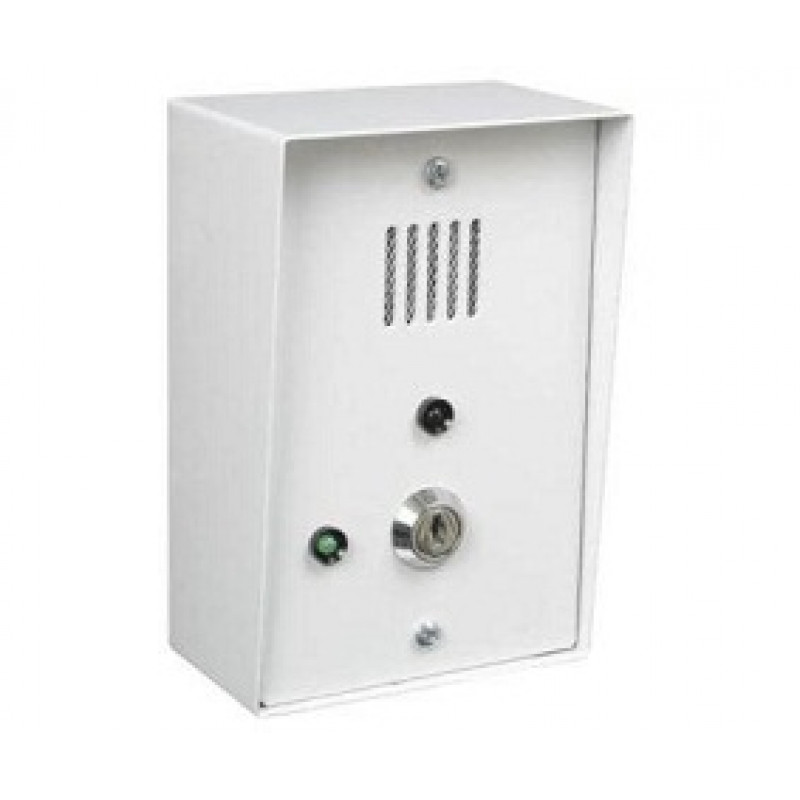

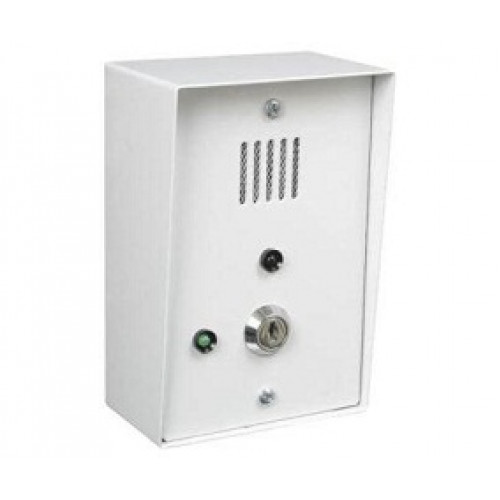

Dantech, DA343FRS, Audio Visual Flush Mounting, Ranom Key, Silent on shunt

Designed to give an audible and visual indication if a door is opened, such as a fire exit door or security cage. These units have one green LED, one red LED, a built-in key operated switch and an internal sounder.

There is an alarm relay output which can be connected to a conventional alarm control panel. This output is shunted when the key switch is turned. It also has an additional relay output, which operates whilst the unit is shunted, to enable remote monitoring of the unit.

The DA343 range is available common or random keyed and with or without audible shunt indication.

Typical uses include fire exit monitoring and with 12V operation, these are also ideal for security cages.

Key Features:

  • Mild steel enclosure
  • Supply voltage 12V DC
  • Current consumption 100mA on & 50mA off
  • Alarm relay SPCO 24V DC 1A
  • Shunt relay SPCO 24V DC 1A
  • Alarm sound output 105dB @ 10CM
  • Tamper switch

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
