Dantach, DA256/24, 8-way Relay within Mild Steel Enclosure
- Brand:Dantech
- Product Code:DA256/24
- Availability:Please Call or Email Us to Check Availability
Dantach, DA256/24, 8-way Relay within Mild Steel Enclosure

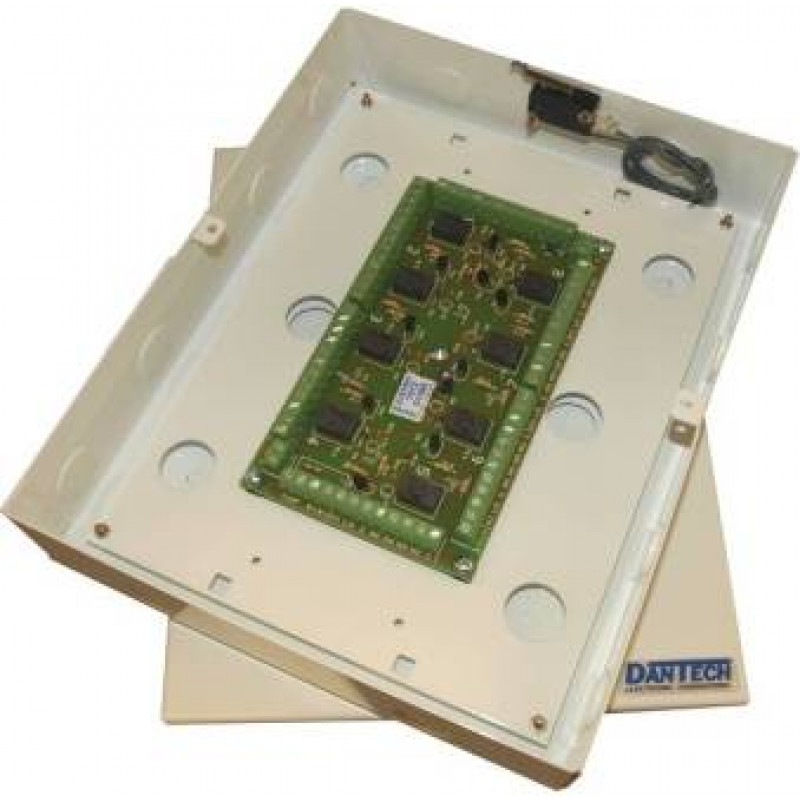

A universal relay unit with eight independent DPCO relays on one PCB. 12V DC operation. The unit also has an inhibit line that de-energises all 8 relays when pulled high.
Typical uses include changing the polarity of signals and switching higher currents and voltages. It can also be used as an interface between different systems e.g. intruder alarm to access control or fire alarm to access control.
This unit can also be useful when the control of a number of components (e.g. door locks) needs to be over-ridden by another system (e.g. a fire panel).
Key Features:
- Mild steel enclosure or PCB only
- Supply voltage 12V DC
- Current consumption <20mA each relay
- Relay contact rating 30V DC 1A
- Tamper switch
- 16 x contact sets
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
