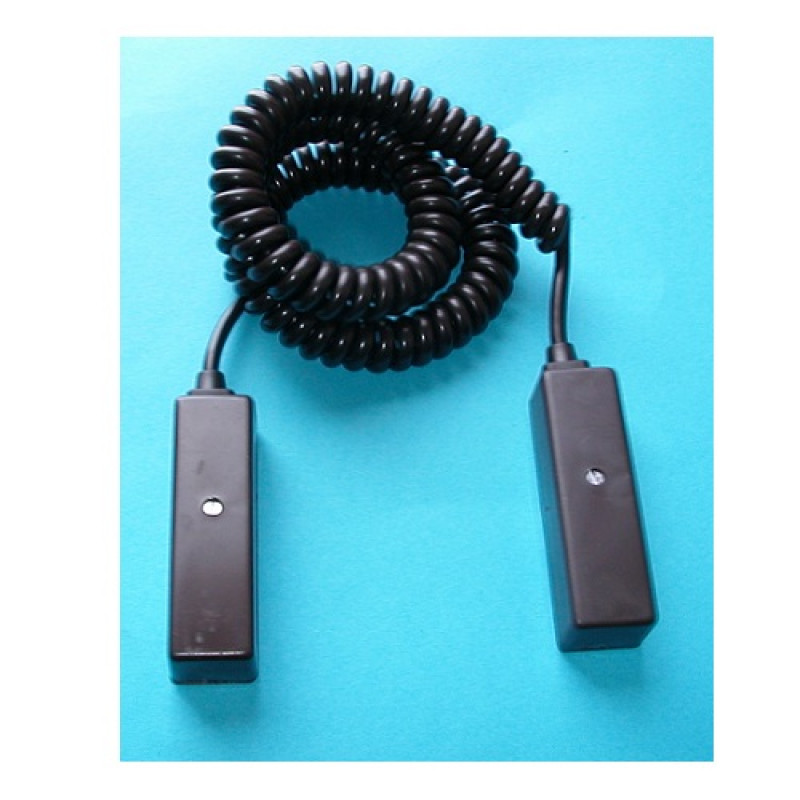

Knight Plastics (L60B) 6-Way 20" (500mm) Coiled Cord Door Loop with JB

Knight Plastics (L60B) 6-Way 20" (500mm) Coiled Cord Door Loop with JB Brown

The L60B is 6-Way 20" (500mm) Coiled Cord Door Loop with JB Brown

Key Features:

• 6-Way 20" (500mm) Coiled Cord Door Loop with JB
• Colour: Brown
• Length: 20" (500mm) Extending to 3500mm
• JB Terminals: 6+2 tamper

Specifications:

Description:

• Grade 2 Class II
• Door Loops, Straight & Coiled

Materials:

• HIPS & PVC Cable
• Moulded on Grommet to fit
• Junction Box knockout

Conductors:

• Cadmium Copper tinsel PVC insulated
• Minimum radial thickness 12mm

Connectors:

• 6BA Open Ended

Temperature Range:

• -40oC to +50oC

Voltage Range:

• 1 – 100v DC
• 125v AC Max

Switching Current:

• 500mA Max DC
• 500mA Max AC

Colours:

• White
• Brown (Suffix B)

Variations:

• Suffix A for no Junction Box

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
