Knight Plastics, A60, 5 Screw Single Reed Normally Open Flush Contact (Grade 1)
- Brand:Knight Plastics
- Product Code:A60
- Availability:Please Call or Email to Checkout

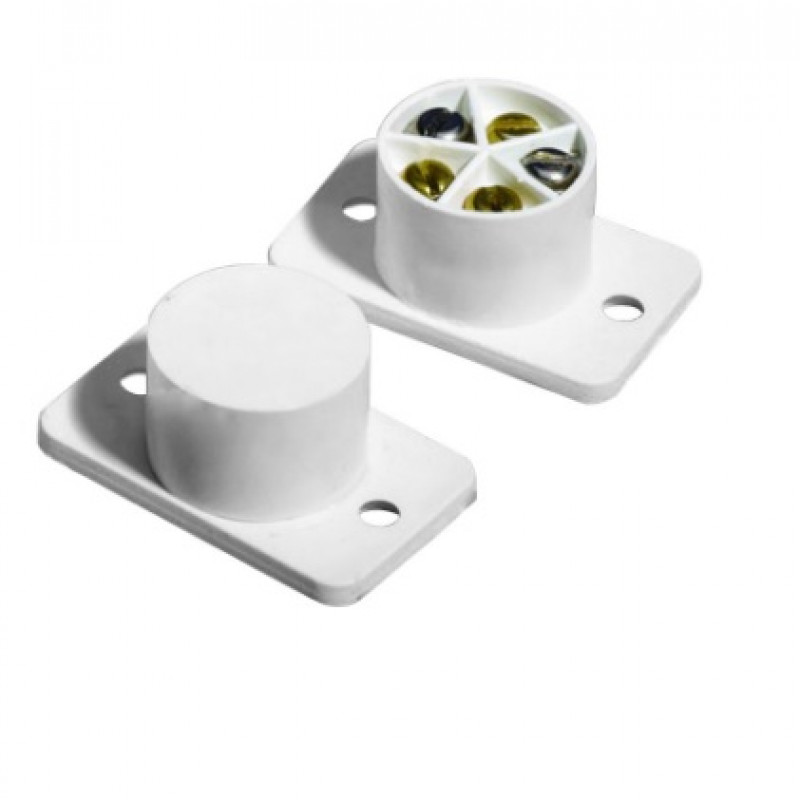

Knight Plastics, A60, 5 Screw Single Reed Normally Open Flush Contact (Grade 1)
A basic 5 screw flush contact . Two nickel screws to govern the reed switch and 3 spare screws for any custom requirements.
Comes complete with fitting screws.
This contact is Normally Open (N/O) – The circuit through the contact is complete until the magnet is moved close by. With the magnet in close proximity, the circuit through the contact is broken.
Specifications:
| Environmental Class |
II – Indoor uncontrolled |
|---|---|
| Terminals |
5 screw |
| Tamper |
None |
| Operating Gap |
~14mm |
| Barrel Dimensions |
20mm diameter, 13mm deep |
| Plate Dimensions |
22mm x 36mm x 2.2mm
|
For more details, please refer with our attached datasheet.
