KnightP (AR11TP) TRIPLE POLE (3PST) Grade 2 Flush Contact For All Door Types
- Brand:Knight Plastics
- Product Code:AR11TP
- Availability:Please Call or Email to Checkout
KnightP (AR11TP) TRIPLE POLE (3PST) Grade 2 Flush Contact For All Door Types
Our new Triple Pole Flush contacts (Partcode: AR11TP) will afford installers additional opportunities to create remote and / or local signals in the case of a protected door being opened. 25mm push fit / crush rib housings will ensure a quick and robust installation. They include a Tamper Loop to Grade 2.
All poles are resistorless / dry, and this range will be suitable for both timber and steel frames.
We are also proud to introduce a heavy duty surface version of the above contact (product code: H10TP) with a 500mm armoured sleeving. Longer armoured sleeving options are available upon request.

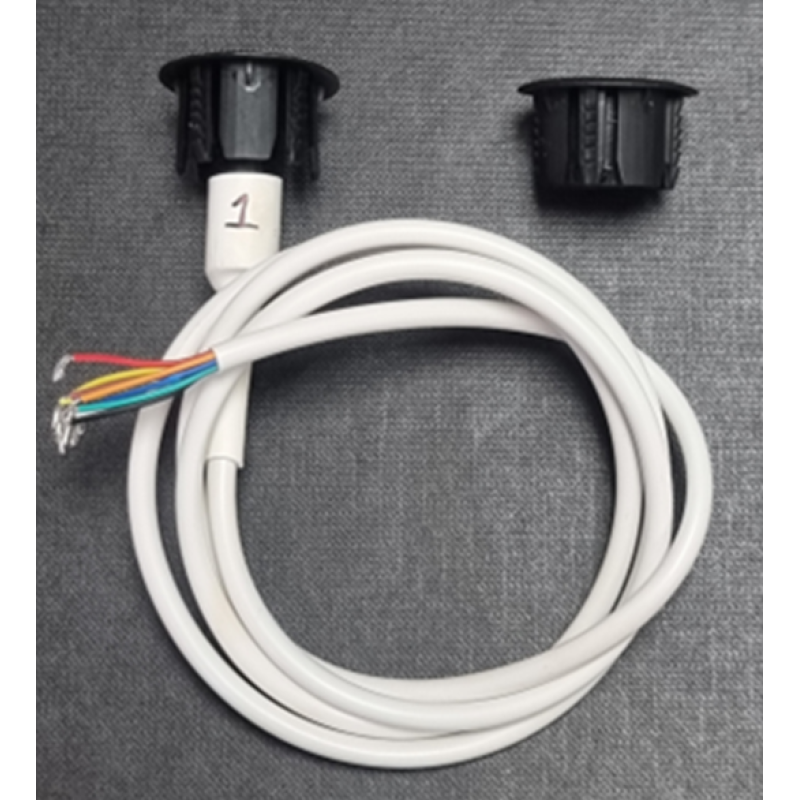

AR11TP is a push fit, triple reed flush contact:
- Triple reed, normally closed. 3PST Configuration (complete circuits when magnet present)
DESCRIPTION
- Grade 2, Env Class III 8 core flush contact for all door types INCLUDING STEEL / FERROUS / TIMBER / UPVC MATERIALS, thin circular plate.
VARIANTS
- Please contact us should you require the following variations manufactured for bespoke projects:
- Potted / pre-wired with any length sheathed 6 core / 8 core / non EOL (4-wire)
- Any EOL / ALARM resistor configurations
ACTIVATION
- Reed switch, ~20mm operating gap (open air).
WIRING
- RED/BLUE SW1
- WHITE/BLACK SW2
- YELLOW/GREEN SW3
- ORANGE/BROWN TAMPER LOOP
MATERIALS
- ABS plastic housings
- Neodymium magnet
- Rhodium reeds
TEMPERATURE RANGE
- -40 to +50 degrees Celsius
ELECTRICALLY RATED AS FOLLOWS
- 500mA Max DC
- 500mA Max AC
- 1 – 100v DC
- 125v AC Max
ADDITIONAL INFORMATION
- Environmental Class: III – Outdoor sheltered
- Fly Lead: 1m – 8 core
- Tamper: Wire loop
- Make Distance: ~5mm
