KnightP, A41MULTIB, G2 Flush Multi-res. All Panels. Brown

KnightP, A41MULTIB, G2 Flush Multi-res. All Panels. Brown

  • Brand:Knight Plastics
  • Product Code:A41MULTIB
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


KnightP, A41MULTIB, G2 Flush Multi-res. All Panels. Brown

Grade 2 Flush Contact 4 Terminal Single Reed Flush Contact Tamper Resistors (Brown)

Grade: 2
Model: A41MULTIB

A Grade 2 contact easily suited to most intermediate installations. Ideal for double door / shared zone use.

A41MULTI features a variety of integral resistors, providing 2 wire EOL installation capability. The resistors will suit a wide range of the most popular panel brands such as; Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, Europlex, Gardtec, HKC, Guardall and Inner Range Control Panels.

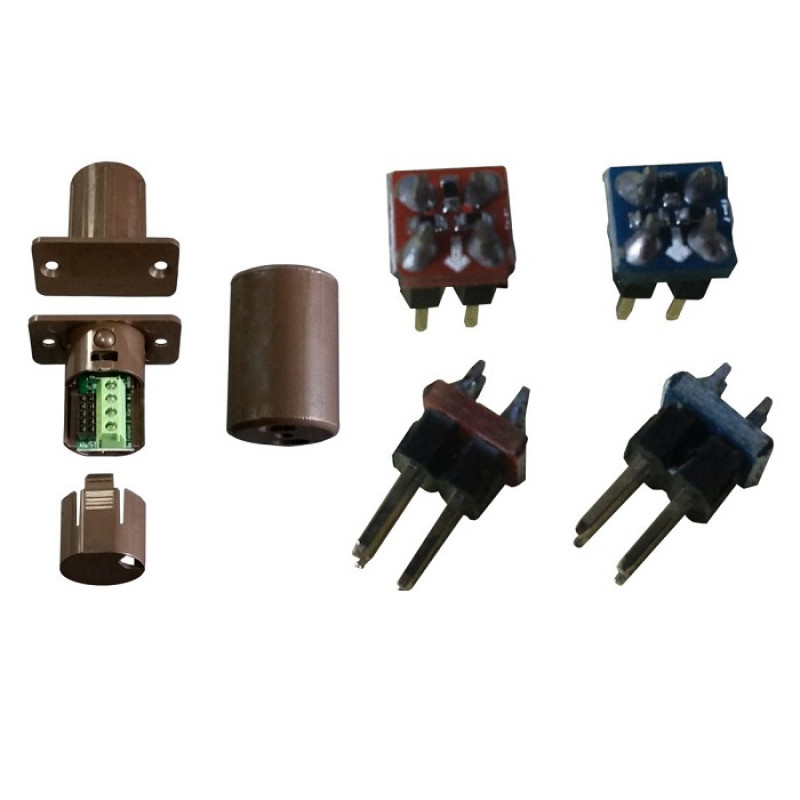

The resistors are supplied on a set of 4 modules – these are to be inserted into the PCB in order to select the desired configuration. A no-resistor combination provides traditional 4-wire capability where desired.

Wiring is completed using four wire clamping screw down terminals on the PCB.

A microswitch tamper provides detection of removal from the fitting recess.

Along with fitting screws, A41MULTI is also supplied with a contact sheath – useful for installations where the fitting recesses have drilled a little wider than 20mm or are otherwise awkward.

Environmental Class

II – Indoor uncontrolled

Terminals

4 terminal

Tamper

Microswitch

Operating Gap

~14mm

EOL Resistors

1k, 2k2, 4k1, 4k7, 5k6, 10k

Alarm Resistors

1k, 2k2, 4k1, 4k7, 5k6, 6k8, 10k

Barrel Dimensions

CONTACT: 19mm diameter, 27mm deep (22mm diameter, 31mm deep with sheath)

MAGNET: 22mm diameter, 25mm deep
