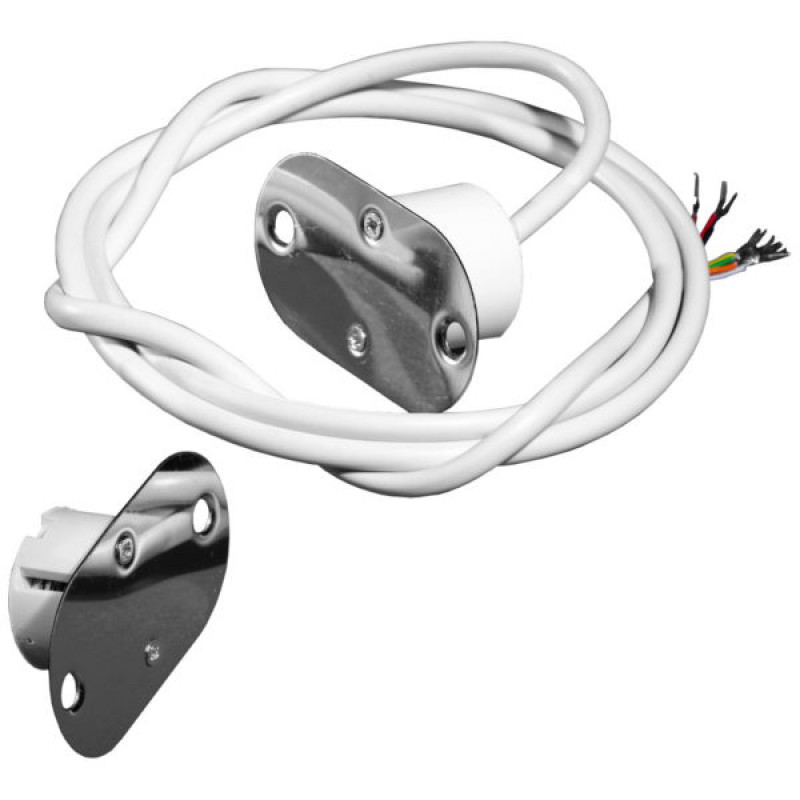

Knight Plastics (YA9010M) G3 Flush Contact Fully Sealed, 25mm, Metal plate 10mtr Cable

Knight Plastics (YA9010M) Grade 3 Flush Contact Fully Sealed, Magnetically Shielded, 8 Core Multiple Resistor 25mm With Metal Plate, suitable for double doors, 10 metre

• Suitable for steel frame installations
• Stainless steel plates
• Double Door Contact
• Body: 25mm diameter
  • CAUTION: please refer to technical drawing for exact sizes and tolerance allowance
• Environmental Class 3
• The YA90 is a universal fully sealed Flush Contact
• 10 metres of potted cable
• It meets all of the necessary requirements for magnetic contacts permitting it to be used within EN50131 Grade 3 installations
• The contact has installer selectable End of Line (EOL) and alarm contact bypass resistors
• Includes Resistors compatible with:
  • Honeywell, Ademco, Orisec, Scantronic, Menvier, Texecom, Pyronix, RISCO Lightsys / Prosys, HKC, Castle, Aritech, DSC, Gardtec / RISCO, Guardall, Orisec and Inner Range Control Panels
• Alarm Values:
  • 1k, 2k2, 4k7, 5k6, 6k8, 8k2
• EOL Values:
  • 1kr, 2k2, 4k7, 5k6, 8k2
• It may be fitted in shared zone / double doors / wired in series configurations
• Manufactured to BS EN50131-2-6
• Operating Gap 20mm

For more details on this product range, including part numbers, please click on the links below to download the relevant document for this product.
