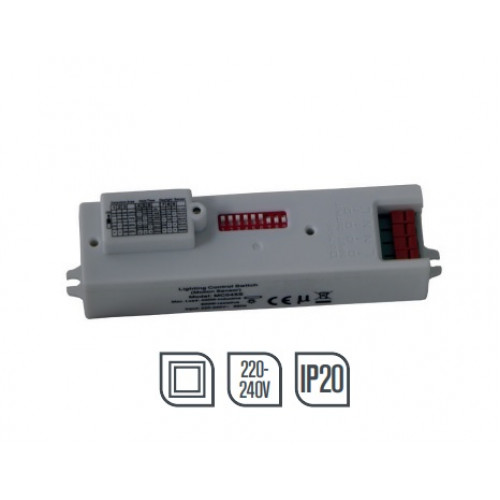

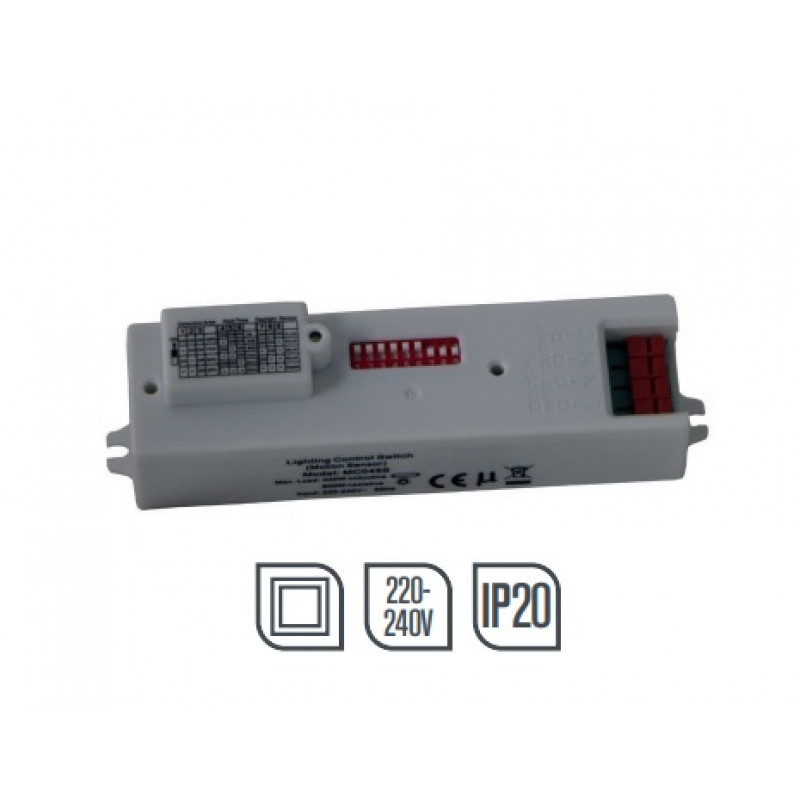

Red Arrow, WFLEDMS, Internal LED Microwave Sensor
The built in microwave sensor for Batten Fittings and Non-Corrosive Fittings.
Applications:
- Commercial Kitchens
- Educational Providers
- Retail
Specifications:
- Voltage: 220-240V, 50/60Hz
- HF System: 5.8GHz ± 75 MHz, ISM wave band
- Max Load: 400W inductive, 800W resistive
- Transmission Power: 0.5mW max.
- Function: Control the lighting ON/OFF.
- Installation: Wall or ceiling mounted.
- Detection Zone: Diameter 8m max.
- Detection Sensitivity: 25%, 50%, 100%
- Time Setting: 5 Seconds / 1 minute / 5 minutes / 15 minutes / 30 minutes
- Mounting Height: Max 6m, recommended 3-4m.
- Detection Angle: 150° (wall installation) 360° (ceiling installation)
- IP Rating: IP20
- Dimensions: L: 115 x W: 37 x D: 25mm
- Working Temp.: -35°C - 50°C
- Light Control: 2~2000Lux, adjustable.
For more details, please refer with our attached datasheet.
