Patol, 700-553, Automatic Cable Reeler S/S 304 with Polyester Junction Box

Patol, 700-553, Automatic Cable Reeler S/S 304 with Polyester Junction Box

  • Brand:Patol
  • Product Code:700-553
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

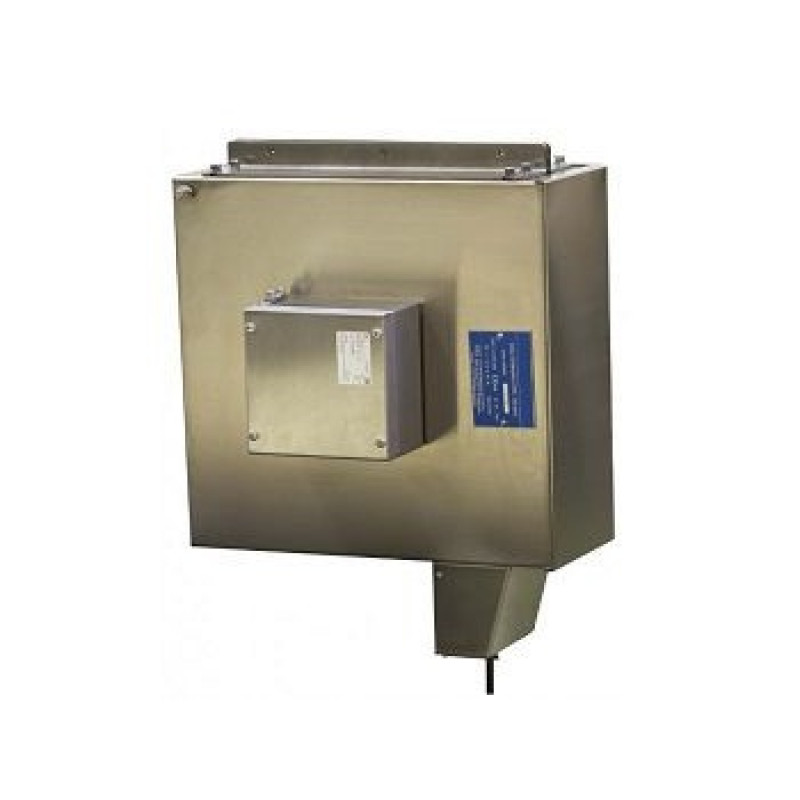

Patol, 700-553, Automatic Cable Reeler S/S 304 with Polyester Junction Box

Automatic Cable Reeler S/S 304 c/w Polyester Junction Box, 23 metre 4 core retractable cable, ATEX approved.

A rim seal fire detection system using Linear Heat Detection Cable (LHDC) can be installed at the edge of the rim seal of a floating roof tank. An automatic cable reeler provides the electrical connection between LHDC and control panel and accommodates the rise and fall of the floating roof.

The Patol Automatic Cable Reeler is installed at the top of the tank with the cable connected to the junction box located on the floating roof. The Automatic Cable Reeler adjusts for the movement of the roof, uncoiling cable when the level falls, and winding the cable when the level rises. This can also be used on a storage tank with Fixed roof and Internal Floating roof with alternative mounting arrangements.

The mechanism is enclosed within a stainless steel cabinet. The connecting cable is resistant to chemical and high temperatures. A removable plate allows inspection.

Key Features:

  • Rim seal Fire Detection for use with Linear Heat Detection Cable (LHDC)
  • ATEX certified
  • Automatic Cable Reeler to accommodate up and down movement
  • Can be mounted both horizontally and vertically
  • IP42 rating
  • Removable plate to allow inspection and maintenance of the spring without the need to remove the unit
  • Intrinsically safe operation when using certified
  • Barriers/Isolators

For more details, please refer with our attached datasheet.
