SL-FT-88, Fixed Temperature Heat Sensing Cable-88°C, White PVC (per m)

SL-FT-88, Fixed Temperature Heat Sensing Cable-88°C, White PVC (per m)

  • Brand:Vimpex
  • Product Code:SL-FT-88
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

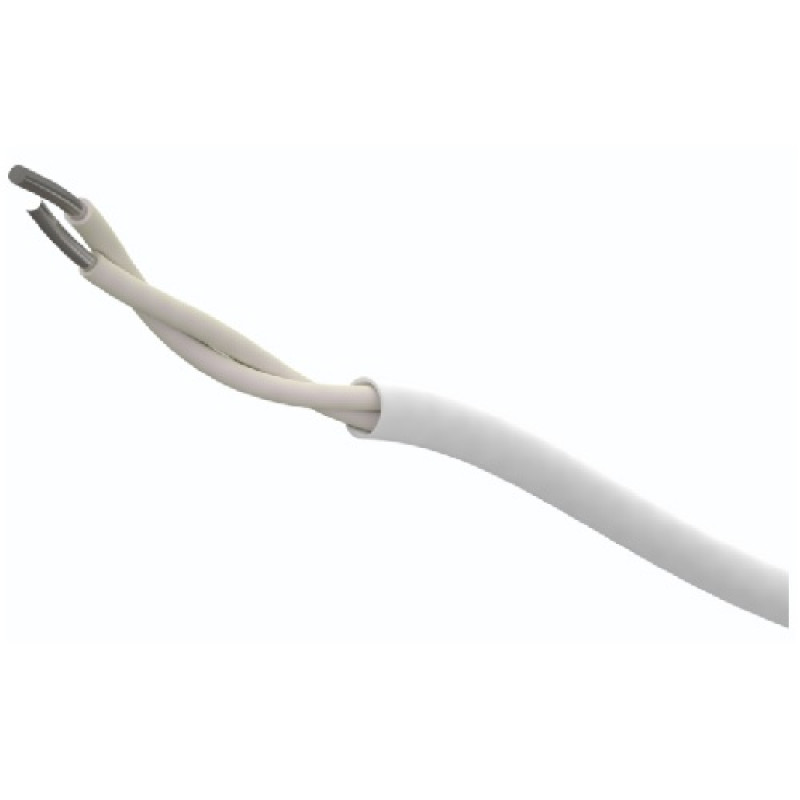

Signaline, SL-FT-88, Fixed Temperature Heat Sensing Cable-88°C, White PVC (per m)

LHD Alarm Temperature: 88°C; Outer Sheath: White PVC

Signaline Fixed Temperature Linear Heat Detector (Signaline FT) detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated. Signaline FT is available in four different temperature settings and two outer cover options making the Signaline FT suitable for use in a very wide range of applications

Specification:

  • Model: Signaline FT-88
  • Alarm temperature: 88°C (190°F)
  • Max ambient temp.: 70°C (158°F)
  • Conductor resistance: 0.1Ω/M or 0.029Ω/FT @20°C
  • Max voltage :42Vdc or 30Vac
  • Dielectric withstand (UL): 500Vdc
  • Tensile strength: 1700 N/mm²
  • Minimum bend radius: 75mm
  • Overall diameter: 3.5mm
  • Outer sheath material: PVC
  • Colour: White
  • Approvals: FM, UL, cUL, KFI

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
