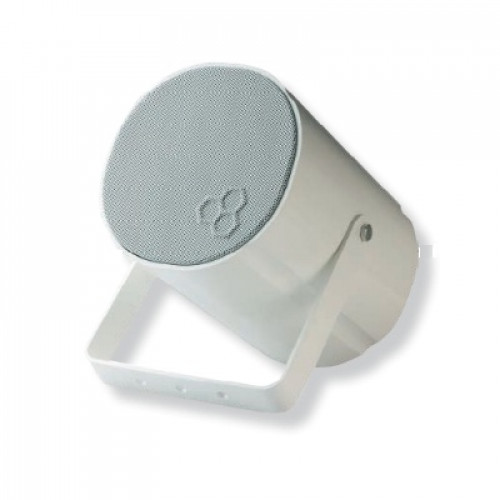

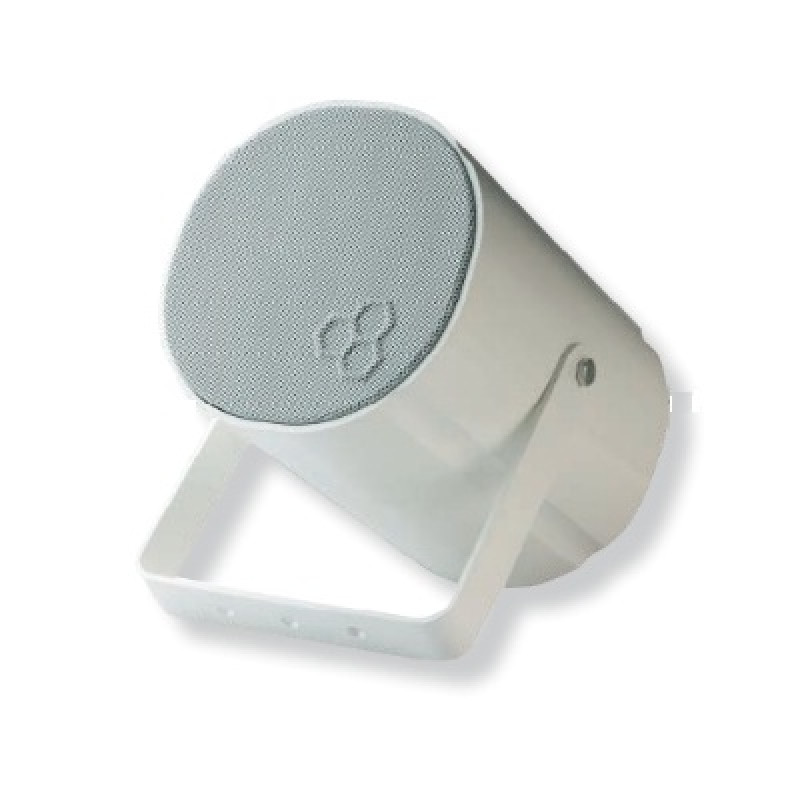

Honeywell (582473) 10W Unidirectional Projection Loudspeaker

Honeywell (582473) 10W Unidirectional Projection Loudspeaker

Honeywell’s voice alarm unidirectional projection loudspeaker complies with BS5839 part 8 and EN54 part 24. Projectors are more directional than cabinet loudspeakers but have better musicality than a horn.

Technical Specifications:

Electrical

• Max power: 20 W
• Rated power: 10 W
• Power taps @ 100V: 10 W / 5 W / 2.5 W / 1.25 W
• SPL at 1W/1M ( 100Hz - 10KHz ): 90dB
• SPL at 10W/1M (100 Hz- 10 KHz ): 98dB
• Frequency range (-10dB): 150 Hz - 20 KHz
• Rated input voltage: 100 V / 70 V
• Rated impedance: 1 KΩ / 2 KΩ / 4 KΩ / 8 KΩ
• Connection: Fire-resistant Cable

Mechanical

• Dimensions (D x L): Φ140 mm x195 mm
• Colour: White (RAL9003)
• Material: Aluminum
• IP Rating: 65

For more details, please refer with our attached datasheet.
