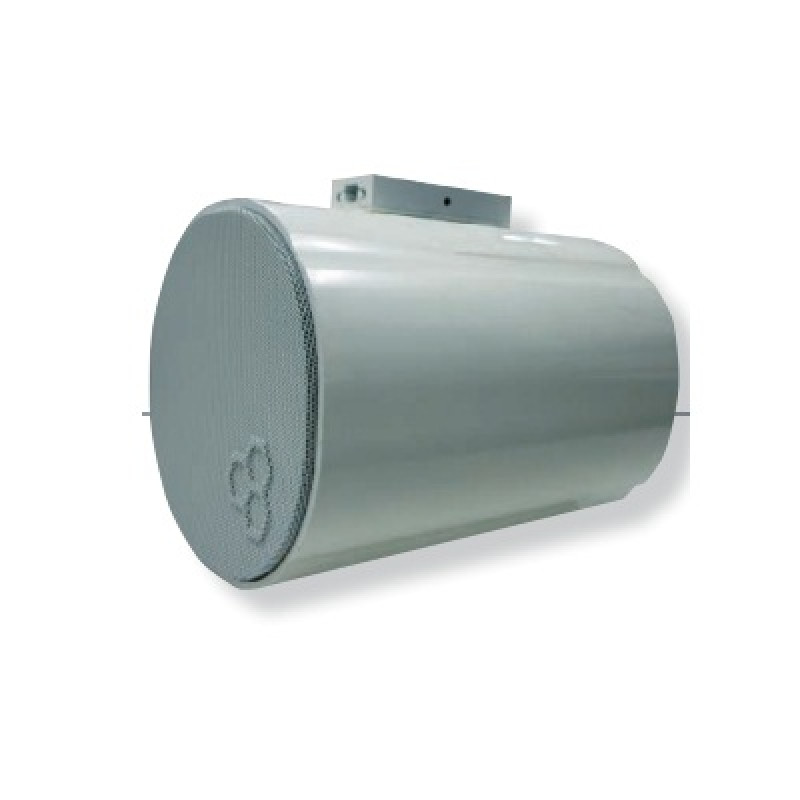

Honeywell (582475) 20W Bidirectional Projection Loudspeaker

Honeywell (582475) 20W Bidirectional Projection Loudspeaker

Honeywell’s voice alarm bidirectional projection loudspeaker complies with BS5839 part 8 and EN54 part 24. 20W Bidirectional Loudspeaker ideal for open areas with high ceilings such as retail units.

Technical Specifications:

Electrical

• Max power: 30 W
• Rated power: 20W (10W x 2 )
• Power taps @ 100V: 20W / 10W / 5W / 2.5W
• SPL at 1W/1M ( 100Hz - 10KHz ): 87dB
• SPL at 20W/1M (100 Hz- 10 KHz ): 99dB
• Frequency range (-10dB): 150 Hz - 15 KHz
• Rated input voltage: 100 V / 70 V
• Rated impedance: 500 Ω / 1K Ω / 2K Ω / 4K Ω
• Connection: Fire-resistant Cable

Mechanical

• Dimensions (D x L): Φ140 mm x195 mm
• Colour: White (RAL9003)
• Material: Aluminum
• IP Rating: 65

For more details, please refer with our attached datasheet.
