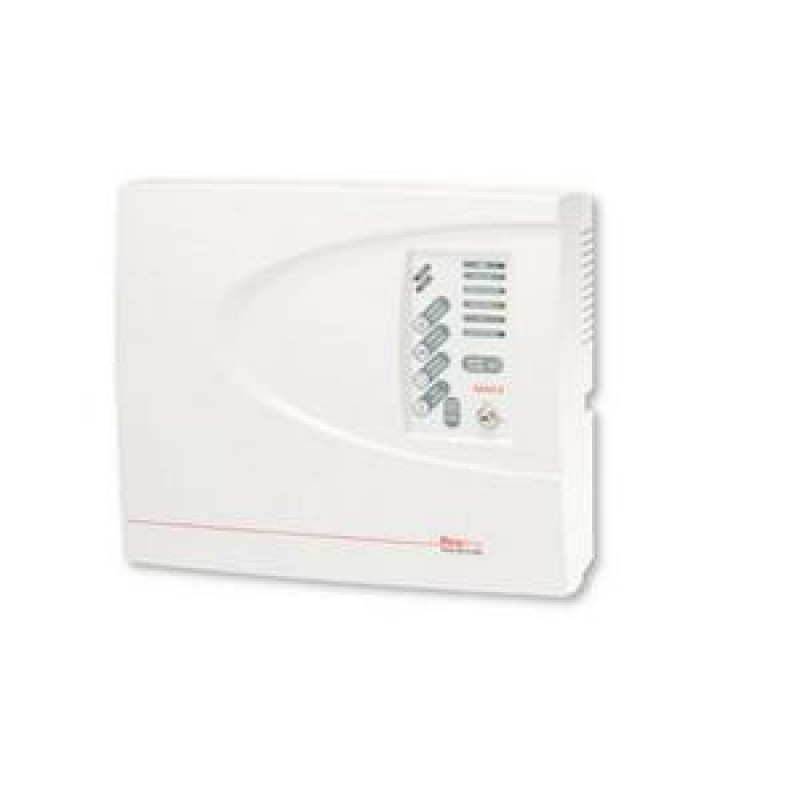

MAGfire (MAG2P) 2 Zone ABS Conventional Fire Panel

MAGfire (MAG2P) 2 Zone ABS Conventional Fire Panel

The MAG Fire Alarm Centre has been carefully designed to answer the rigorous demands of specifiers, installers and users. For specifiers, the MAG Alarm Centre offers a host of features, designed into a quality engineered package.

Key Features:

• 2 programmable zones
• Activate end of line monitoring
• 30 fire detectors per zone
• Unlimited number of call points per zone
• Integral manual alarm button
• \'Class change\' facility
• Enable/disable security key
• One man walk test facility
• Fire volt free change over relay
• Fault volt free change over relay
• Individual sounder circuit fault ID
• Individual zone/sounder isolate
• BS5839 and EN54 compliant
• CE certified
• Requires only 1x12v battery (see batteries section)
• ABS casing

Technical Specification:

• Max Detectors Per Zone: 30
• Thresholds for Zone Conditions: 0 - 2 mA (Fault condition) 2 - 6 mA (Normal condition) 6 - 110 mA (Fire condition) 110 mA - Short (Fault condition)

 Mains Fail Consumption: 50mA

• Mains Supply: 230 VAC ± 10%
• Standby Supply: 1 x 7ah 12V S.L.A. Battery
• Power Availability: 0.7 amps

Outputs:

• Sounder 1: 24V (max 300mA fused)
• Sounder 2: 24V (max 300mA fused)
• Fault/Fire Relay: Volt free 500mA @ 24V (max load)
• Auxiliary Output: 24VDC (300mA fused)

Environment:

• Working Temperature: 0 to 40ºC
• Storage Temperature: -20 to 60ºC
• Humidity: 0 - 95%
• Dimensions MAG2P: 340 x 290 x 100mm
• Dimensions MAG2: 200 x 290 x 80mm

For more details, please refer with our attached datasheet.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
