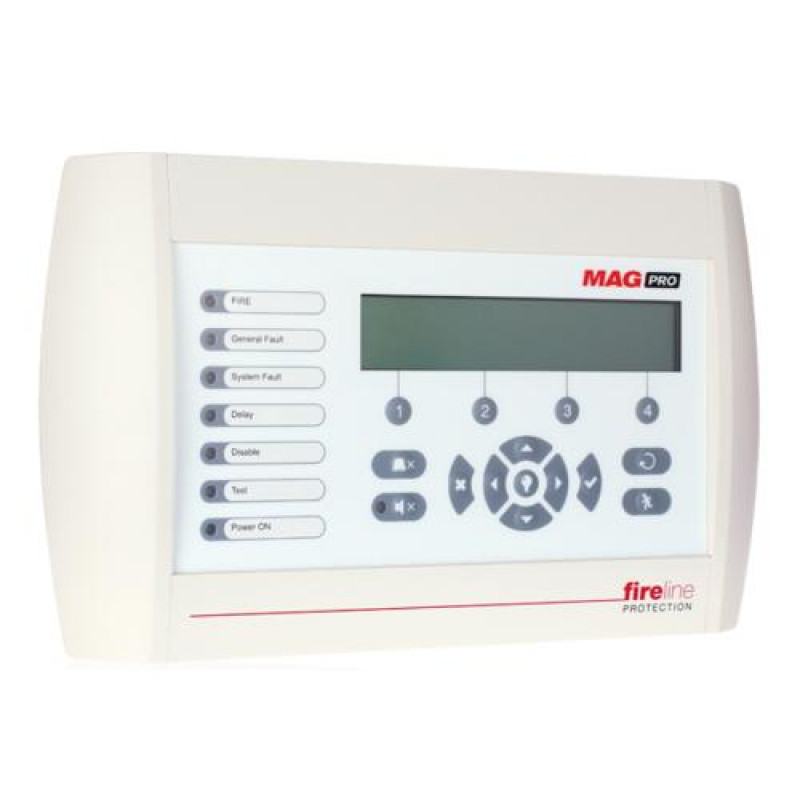

MAGfire (MAGPRO-REP) Addressable Repeater Panel

MAGfire (MAGPRO-REP) Addressable Repeater Panel

Key Features:

• Slimline flush mount design
• Compatible with MAGPRO16 Ver2.8 and higher
• Compatible with MAGPRO96
• Requires 24V DC
• Max consumption of 0.11A (110mA)
• Each panel in network will require a MAGPRO-NIC
• Maximum of 32 panels in the network
• 1000m distance from MAGPRO-REP to MAGPRO-NIC
• Dimensions 200 x 330 x 48mm
• Ring type network
• 10,000 event log within the repeater

Technical Specifications:

Power:

• From a MAGPRO Panel: AUX / GND
• External: 24VDC +/-4 VDC
• Consumption: 110mA

Input:

• Communication: RS485
• Max Length Between Panels: 1000m

Output:

• Communication: RS485
• Max Length Between Panels: 1000m

Technical spec:

• Memory LOG: 10,000 events
• Network type: Ring
• MAGPRO16 Firmware Compatibility: Ver 2.8 or higher
• MAGPRO96 Firmware Compatibility: Ver 4.2 or higher
• Max number of panels: 32
• Connection to MAGRO Panel: Via MAGPRO-NIC

Environment:

• Working Temperature: -10°C to +50°C
• Humidity: 95%
• Dimension: 200 x 330 x 48mm

For more details, please refer with our attached manual.
