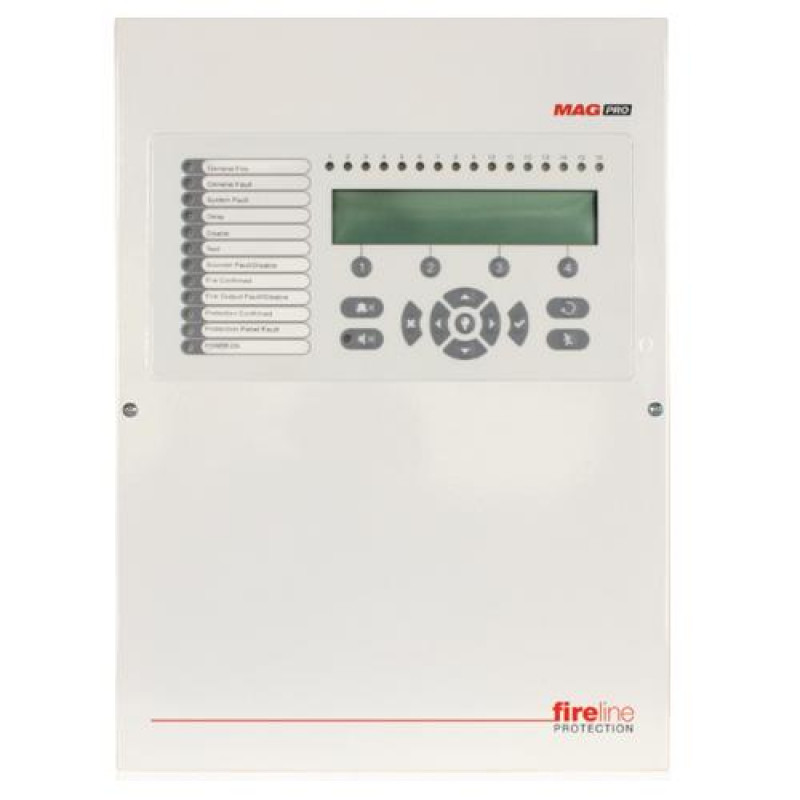

MAGfire (MAGPRO16) Addressable 16 Zone Fire Panel

MAGfire (MAGPRO16) Addressable 16 Zone Fire Panel

16 zone addressable fire alarm panel supplied with 1 loop. Expandable to 2 loops using MAGPRO16-L250. A maximum of 250 devices can be connected to each loop.

Key Features:

• 16 Zones
• Maximum 250 devices per loop
• Memory Log: 10,000 events
• Networkable up to 32 Panels
• 4 x 40 character LCD display
• Free programing software
• Micro USB port for PC connection
• Loop & battery calculator software included
• Certified to EN54–2/4

Technical Specifications:

Inputs:

• Loops: 1 expandable to 2
• Devices Per Loop: 250
• Protocol: MAGPRO

Power:

• Mains Fail Consumption: 125mA DC – 1 LOOP 213mA DC – 2 LOOP
• Mains Supply: 230V AC + 10%/ -15%
• Max Loop Current: 500mA DC
• Backup: 1x12V 18Ah

Outputs:

• 2 Sounders: 24v DC @ 500mA
• 4 Programmable Relays: 24v DC @ 15A
• 3 Monitored Outputs: 24v DC @ 100mA
• 3 Monitored Inputs: Volt free contacts

Environment:

• Working Temperature: -5°C to +40°C
• Storage: -10°C to 60°C
• Humidity: 0 - 95%
• Dimensions: 320 x 220 x 80mm

For more details, please refer with our attached manual.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
