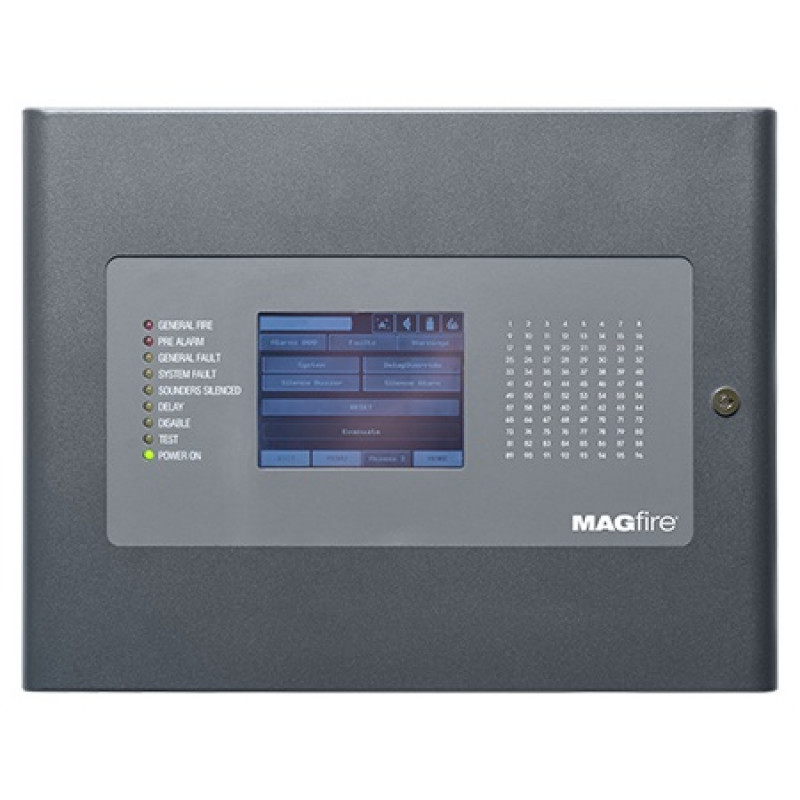

MAGfire (MAGPRO96G) Addressable 96 Zone Panel Grey Case

MAGfire (MAGPRO96G) Addressable 96 Zone Panel Grey Case

 Key Features:

• 96 Zones
• Maximum 250 devices per loop
• Memory Log: 10,000 events
• Networkable up to 32 Panels
• 320 x 240 pixel touch screen display
• Free programming software
• Micro USB port for PC connection
• Loop & amp; battery calculator software included
• Certified to EN54–2/4

Technical Specifications:

 Inputs:

• Loops: 1 expandable to 2
• Devices Per Loop: 250
• Protocol: MAGPRO

Power:

• Mains Fail Consumption: 285mA DC - 1 LOOP 360mA DC - 2 LOOP 435mA DC - 3 LOOP 510mA DC - 4 LOOP
• Mains Supply: 230V AC + 10%/ -15%
• Max Loop Current: 500mA DC
• Backup: 1x12V 18Ah

Outputs:

• 1 Sounder: 24v DC @ 300mA
• 4 Programable Relays: 24v DC @ 15A
• 2 Monitored Outputs: 24v DC @ 300mA
• 1 Auxillary Output: 24v DC @ 300mA
• 1 Fault Output: 24v DC @ 300mA

Environment:

• Working Temperature: -5°C TO +40°C
• Storage: -10°C TO 60°C
• Humidity: 0 - 95%
• Dimensions: 456 x 350 x 125mm

For more details, please refer with our attached Manual.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
