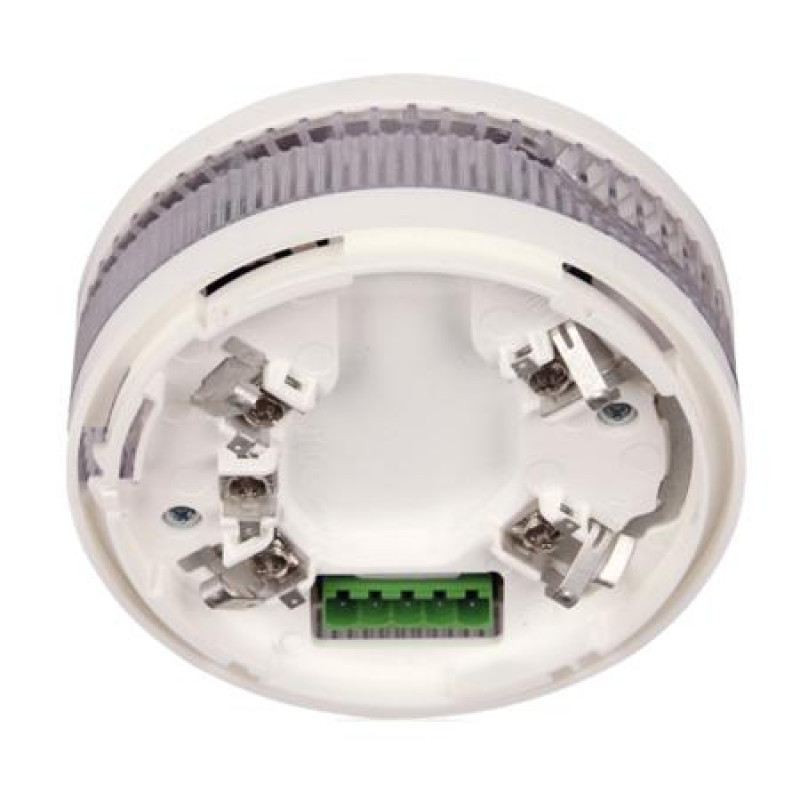

MAGfire (MAGPRO-DBSS) Addressable Base Sounder Strobe

MAGfire (MAGPRO-DBSS) Addressable Base Sounder Strobe

Compatible with:

• MAGPRO-SD1
• MAGPRO-HD1
• MAGPRO-HSD1

Technical Specification:

• Operating Voltage: 15-32VDC
• Nominal Consumption (Stand-by): 470uA@27VDC

Maximum Consumption:

• Tone Type 27, Low Volume Level: 3ma@27VDC
• Tone Type 27, High Volume Level: 10mA@27VDC

Power Volume(Tone 27) selectable from control panel:

• Low Volume (up to 100x MAGPRO DBS on the loop): 92dB
• high volume (up to 30x MAGPRO DBS on the loop): 100dB

Power Volume Other Tone type selectable from the control panel:

• Low Volume (up to 100x MAGPRO DBS on the loop): 82-92dB
• high volume (up to 30x MAGPRO DBS on the loop): 90-100dB
• Number of tone types selectable from control panel: 32
• Wire Gauage for terminals: 0.4 - 2.0mm²
• Operating Temperature: -10°C TO 60°C
• Relative humidity resistance: (93±3)% @40°C
• Protection: IP21
• Dimensions: 102x33mm
• Dimensions with SD1/HD1: 102x63mm
• Dimensions with HSD1: 102x76mm
• Colour: White
• Material: ABS
• Frequency of strobe flash: 1Hz

For more details, please refer with our attached manual.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
