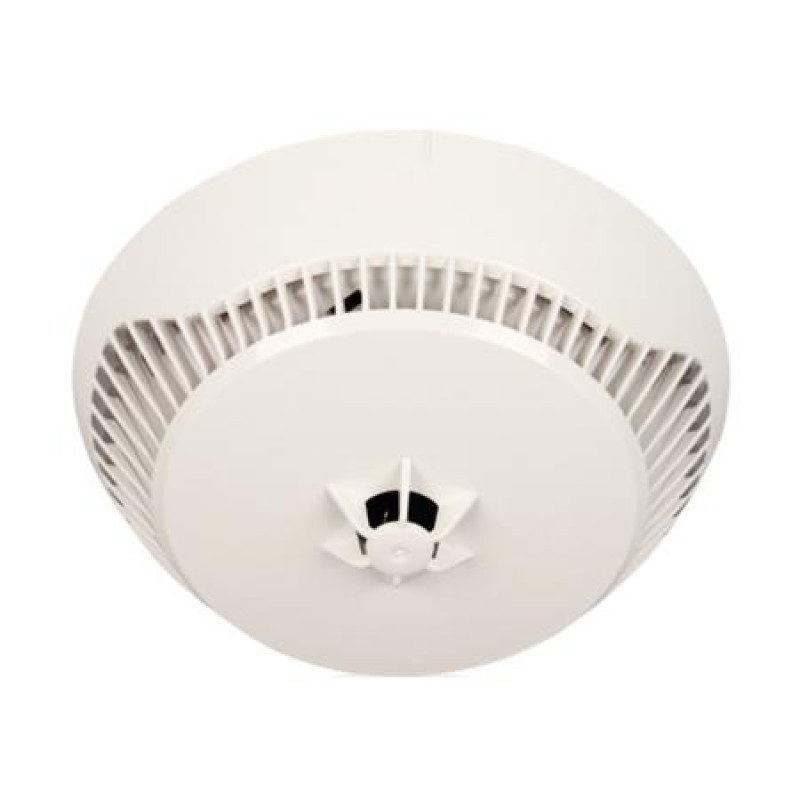

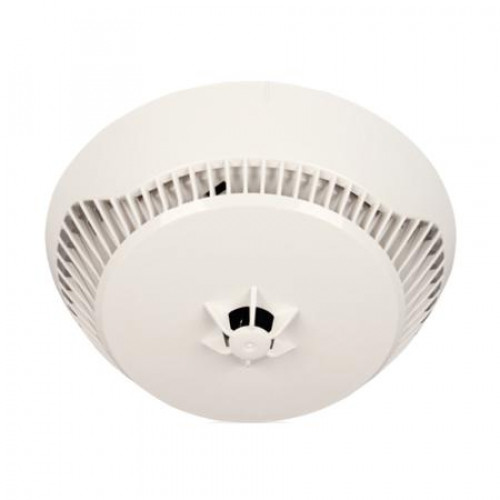

MAGfire (MAGPRO-HSD1) Addressable Combined Smoke and Heat Detector
- Brand:ESP
- Product Code:MAGPRO-HSD1
- Availability:Please Call or Email Us to Check Availability
MAGfire (MAGPRO-HSD1) Addressable Combined Smoke and Heat Detector
Key Features:
- Sensitivity selectable from the control panel -High/Normal/Middle/Low
- Class A1R temperature sensor (according to EN54-5)
- Protected area - up to 120m2
- Installation height - up to 16m
- Day/Night mode
- Low profile design
- LED indication with 360° visibility
- Certified to EN54–5/7
- Base ordered separately see MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
Technical Specification:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Quiescent State No Communications: <160uA @ 27VDC
Consumption in Quiescent state with comms: < 200uA @27VDC
Consumption in Alarm State with Comms: 6.5mA
Sensitivity, Selectable from Control Panel: HIGH / NORMAL / MIDDLE / LOW
Protected area(in accordance with EN54-5,7): up to 120m²
Output in alarm state at terminal RI: 7.5mA (MAX) 7.5V
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating Temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP30
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
