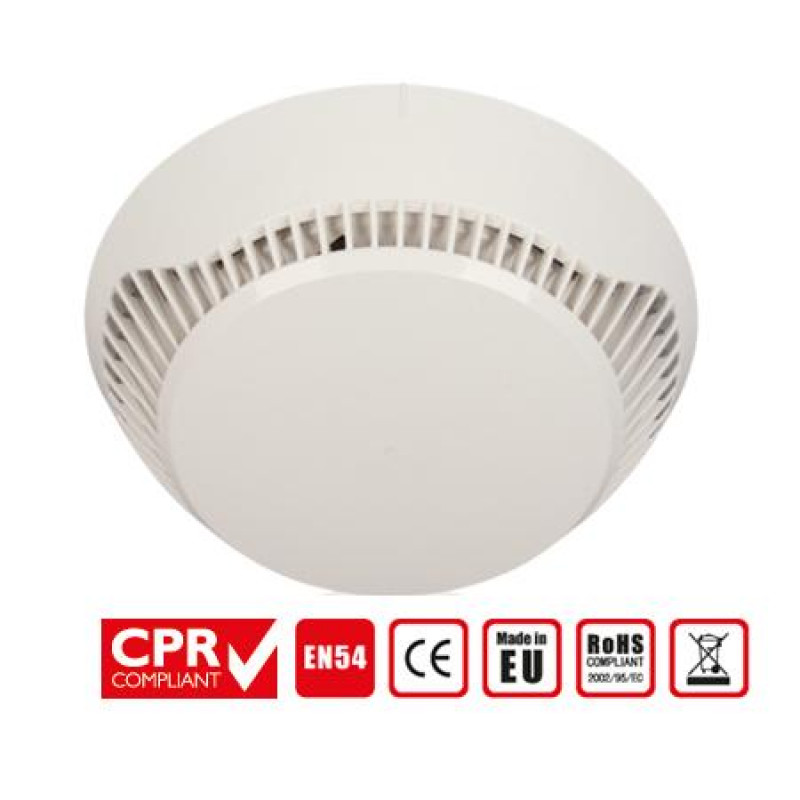

MAGfire (MAGPRO-SD1) Addressable Smoke Detector
- Brand:ESP
- Product Code:MAGPRO-SD1
- Availability:Please Call or Email to Checkout
Your shopping cart is empty!
MAGfire (MAGPRO-SD1) Addressable Smoke Detector
Key Features:
Technical Specifications:
Operating Voltage Range: 15-30VDC (Nom 27VDC)
Consumption in Quiescent State No Communications: <160uA @ 27VDC
Consumption in Quiescent state with comms: < 200uA @27VDC
Consumption in Alarm State with Comms: 6.5mA
Sensitivity, Selectable from Control Panel: HIGH / NORMAL / MIDDLE / LOW
Protected area(in accordance with EN54-7): up to 120m²
Output in alarm state at terminal RI: 7.5mA (MAX) 7.5V
Wire Gauge for terminals: 0.4mm² - 2.0mm²
Operating Temperature: -10°C to +60°C
Relative Humidity Resistance: (93±3)% @40°C
Protection: IP30
Dimensions (Including Base): 103x42mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
