CDVI, BO900W, Architectural handle for inset walls, 3x 300kg magnet, 2500mm

CDVI, BO900W, Architectural handle for inset walls, 3x 300kg magnet, 2500mm

  • Brand:CDVI
  • Product Code:BO900W
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

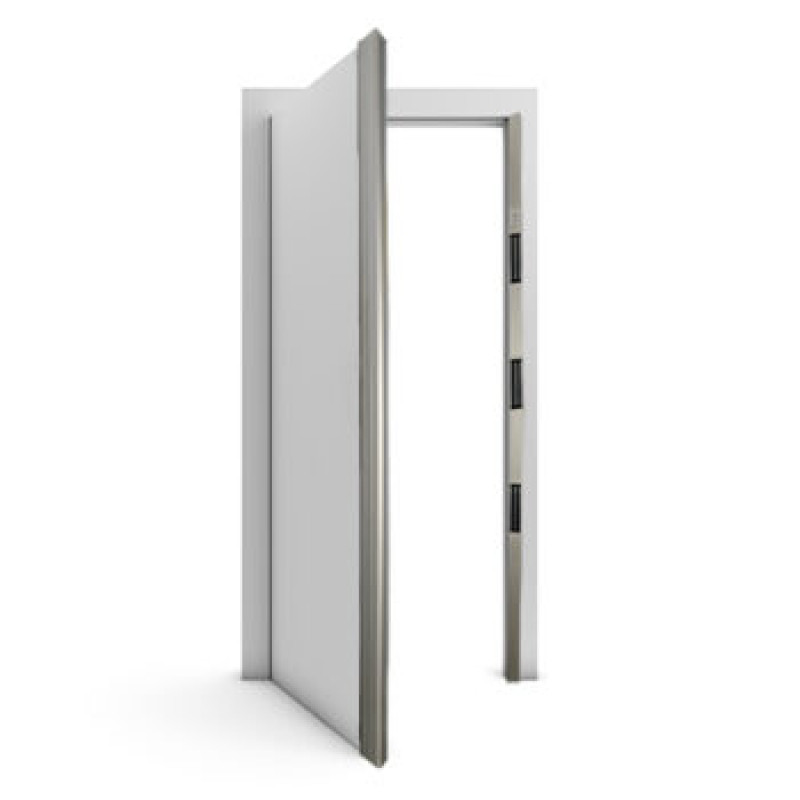

CDVI, BO900W, Architectural handle for inset walls, 3x 300kg magnet, 2500mm

Magnetic pull handles are becoming increasingly popular with sites that require a combination of strong holding force and an aesthetic finish. Ideal for high traffic zones such as schools or public buildings, the handles can be fitted to either new or existing doors. The BO900W is a 2.5m handle with three 300kg monitored magnets. This model is specially designed for projects where the door is not flush with the wall but set back into the wall, meaning standard pull handles do not fit the frame.

Because every door is different, the handle can be cut down to custom size (minimum 1.2m) and bespoke RAL colours are available.

Key features

  • Architectural pull handle with 3x300kg monitored magnets
  • Fit to new doors or retrofit to existing doors
  • Specially designed for sites where the door is not flush with the wall
  • Ideal for high traffic sites that need high holding force and an aesthetic finish
  • Can be cut down to bespoke size and sprayed in custom RAL colour
  • Suitable for wooden, metal, or glass doors

TECHNICAL SPECIFICATIONS

  • Fail Safe / Fail Secure: Fail safe
  • Mounting: Surface
  • Min Temperature (°C): -20
  • Max Temperature (°C): 70

ELECTRICAL SPECIFICATIONS

  • Min. Voltage (V): 12Vdc
  • Max Voltage (V): 24Vdc
  • Voltage AC/DC: DC
  • Max Power Consumption (mA): 550mA

APPEARANCE

  • Surface Material: Satin anodised aluminium
  • Colour: Silver metallic or custom RAL colour

DIMENSIONS

  • Product Height (mm): 2500
  • Product Width (mm): 97
  • Product Depth (mm): 60
  • Product Weight (kg): 13
