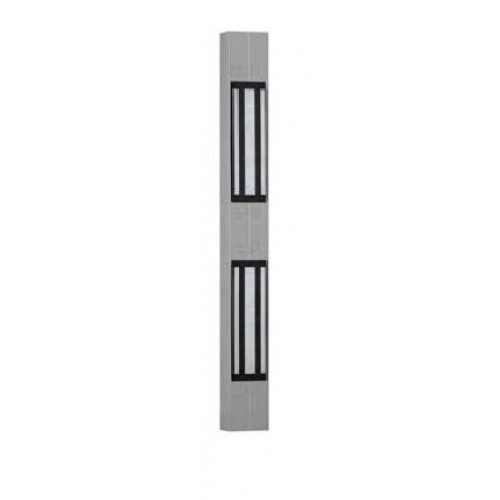

CDVI, PBO800RN60 , 2x400KG Retrofit Handle Magnets - 600MM

CDVI, PBO800RN60, 2x400KG Retrofit Handle Magnets - 600MM

Key Features:

• NF S 61-937.
• Ultra-quick installation.
• 600mm handle.
• Pre-drilled sections (adjustable).
• Width overlapping the previous installations.
• Terminal block.
• Holding force: 2 x 400 kg.
• Satin-fi nished silver anodised aluminium section with possibility of RAL (Option).
• End caps for the ends of the handles.
• Glass door option: UBK (See P. 254).
• Dimensions (L x W x D): 600 x 126 x 68mm.
• Input voltage: 12/24/48V dc.
• Consommation par ventouse 400kg:
  - 12V dc = 550mA,
  - 24V dc = 275mA.
• Consumption for the two 400kg electromagnetic locks en 48V dc: 275mA.

For more details, please refer with our attached datasheet.
