ICS, FR-U10010DSU, Standard Magnet c/w Door Status

ICS, FR-U10010DSU, Standard Magnet c/w Door Status

  • Brand:ICS
  • Product Code:FR-U10010DSU
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

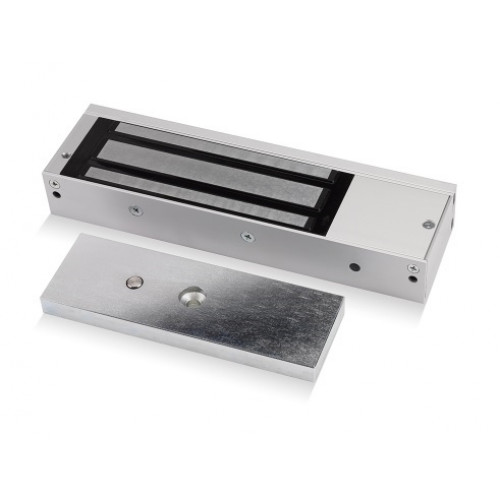

ICS, FR-U10010-DSU, Standard Magnet c/w Door Status

The FR-U10010-DSU is a Standard Magnet c/w Door Status.

Key Features:

  • Operating voltage 12~24Vdc (Selectable)
  • Aluminium housing
  • Safety bolts fitted
  • Fire tested: BS EN1634:1
  • Holding force up to 1200lbs (544Kg)
  • Electro-less nickel plated armature
  • Door status: An independent contact that works separately from the magnet to show door status not lock status

Specifications:

  • Voltage tolerance: ±10%.
  • Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
  • Aluminium housing, nickel plated armature.
  • Humidity: 0~95% non-condensing.
  • Dimensions : 268 × 67 × 40 mm.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
