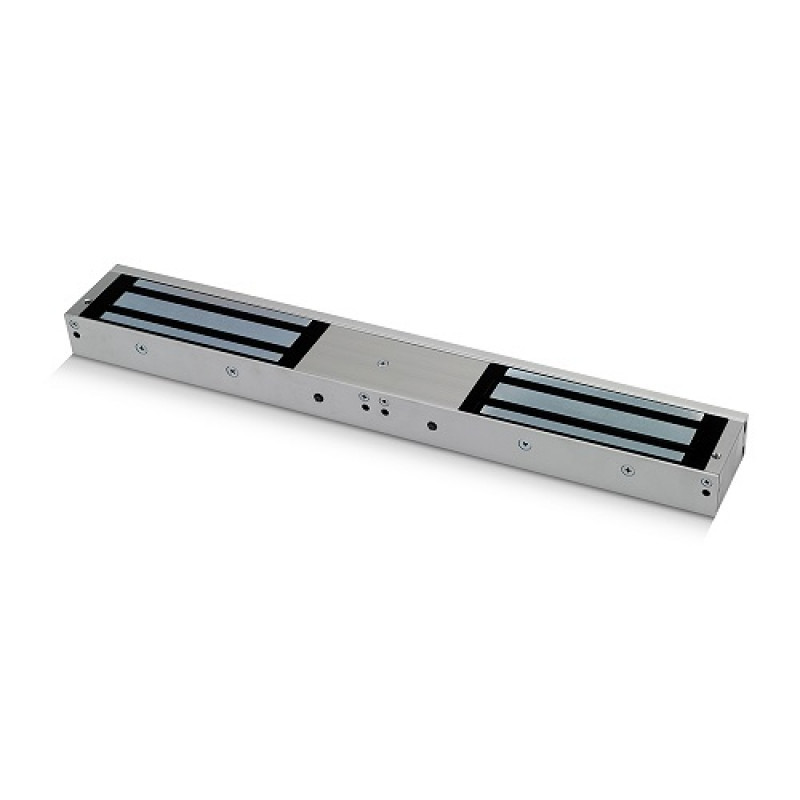

ICS, FR-U10060, Double Standard Magnet Unmonitored

ICS, FR-U10060, Double Standard Magnet Unmonitored

  • Brand:ICS
  • Product Code:FR-U10060
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


ICS, FR-U10060, Double Standard Magnet Unmonitored

Double Standard Magnet Unmonitored.

Key Features:

  • FD30 + FD60 Rated
  • Operating voltage 12~24Vdc (Selectable)
  • Aluminium housing
  • Unmonitored
  • Safety bolts fitted
  • Fire tested: BS EN1634:1
  • Holding force up to 2 x 1200lbs (544Kg)
  • Electro-less nickel plated armature
  • 1 Hour UK fire certificate

Specifications:

  • Voltage tolerance: ±10%
  • Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C)
  • Operating temperature: -10~55°C (14 to 131°F)
  • Lock’s surface temperature: Current temperature ±20% (when power is on)
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
  • Aluminium housing, nickel plated armature
  • Humidity: 0~95% non-condensing
  • Dimensions: 532 × 67 × 40 mm

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
