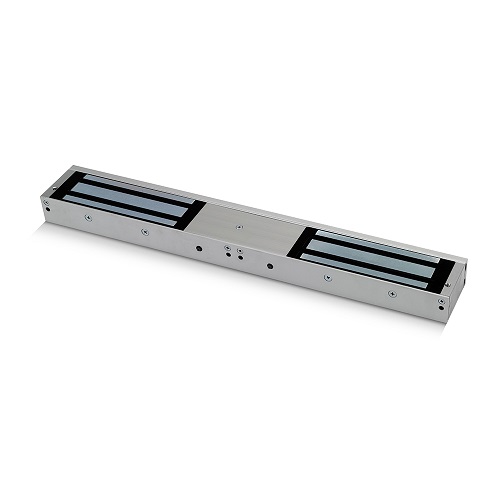

ICS, FR-U10060DSU, Double Standard Magnet Unmonitored C/W Door Status
- Brand:ICS
- Product Code:FR-U10060DSU
- Availability:Please Call or Email Us to Check Availability
ICS, FR-U10060-DSU, Double Standard Magnet Unmonitored C/W Door Status
Double Standard Magnet Unmonitored c/w Door Status.
Key Features:
- FD30 + FD60 Rated
- Operating voltage 12~24Vdc (Selectable)
- Aluminium housing
- Unmonitored
- Safety bolts fitted
- Fire tested: BS EN1634:1
- Holding force up to 2 x 1200lbs (544Kg)
- Electro-less nickel plated armature
- 1 Hour UK fire certificate
Specifications:
- Voltage tolerance: ±10%
- Current draw: 420mA at 12Vdc, 210mA at 24Vdc (at temperature 20°C)
- Operating temperature: -10~55°C (14 to 131°F)
- Lock’s surface temperature: Current temperature ±20% (when power is on)
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
- Aluminium housing, nickel plated armature
- Humidity: 0~95% non-condensing
- Dimensions: 532 × 67 × 40 mm
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
