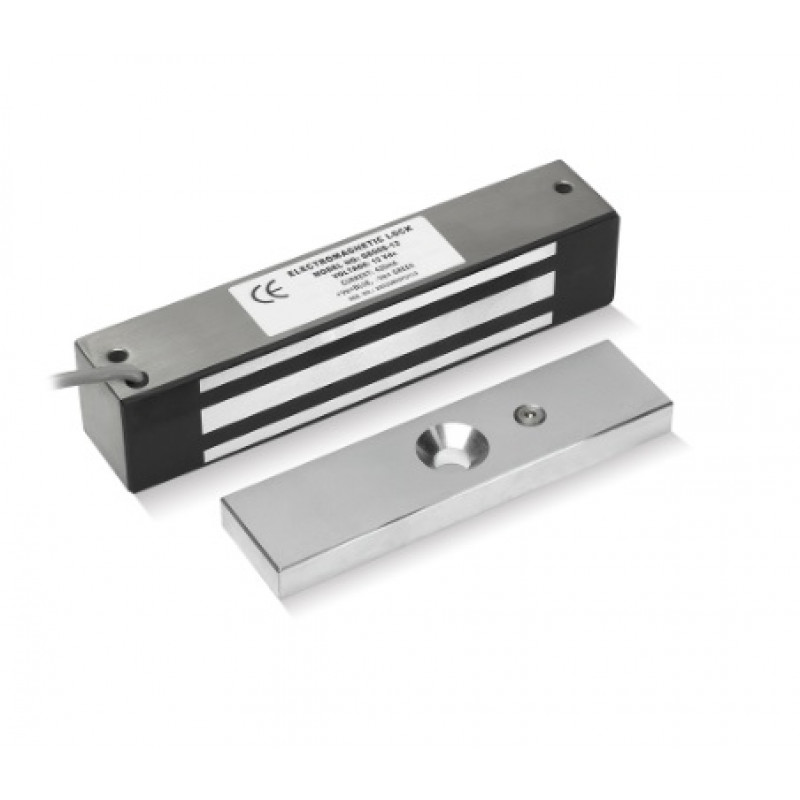

ICS, G600M, Magnet - Stainless Steel Monitored
- Brand:ICS
- Product Code:G600M
- Availability:Please Call or Email Us to Check Availability
ICS, G600M, Magnet - Stainless Steel Monitored
The G600M is a Magnet - Stainless Steel Monitored.
Key Features:
- Operating voltage 12Vdc
- Monitored
- Stainless Steel
- Weather resistant: IP65
- Vandal resistant
- Holding force up to 600lbs (272kg).
Specifications:
- Voltage tolerance: ±15%.
- Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for magnet and armature plate.
- Dimensions : 203 × 45 × 40 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
