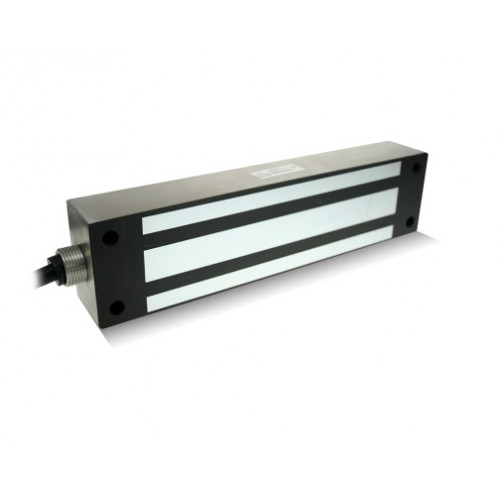

ICS, GL-1800F-10TB, Electromagnetic Lock/GL-1800F/12/24V
- Brand:ICS
- Product Code:GL-1800F-10TB
- Availability:Please Call or Email Us to Check Availability
ICS, GL-1800F-10TB, Electromagnetic Lock/GL-1800F/12/24V
The GL-1800F-10TB is a Electromagnetic Lock/GL-1800F/12/24V.
Key Features:
- Operating voltage 12 or 24Vdc.
- Stainless Steel.
- Holding force up to 1800lbs (818kg).
- Face mount on sliding doors .
- Weather resistant: IP67.
- Vandal resistant.
- Suitable for prison or high-security gate.
- Voltage tolerance: ±15%.
- Current draw: 500mA at 12Vdc, 250mA at 24Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for the magnet.
Specifications:
- Dimensions : 284 × 72 × 47.5 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
