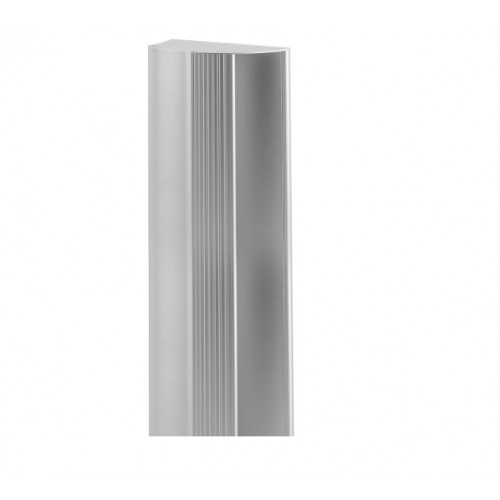

ICS, PH900, Door Handle Magnet 2,500mm (Prev. PH600)
- Brand:ICS
- Product Code:PH900
- Availability:Please Call or Email Us to Check Availability
ICS, PH900, Door Handle Magnet 2,500mm (Prev. PH600)
The PH900 is a Door Handle Magnet 2,500mm (Prev. PH600).
Key Features:
- Operating voltage 12~24Vdc
- Aluminium
- Unmonitored
- Fail-Safe (Power to Lock)
- Holding force 2 x 600lbs (545Kg).
Specifications:
- Voltage tolerance: ±15%.
- Current draw: 2 x 500mA at 12Vdc (at temperature 20°C).
- Operating temperature: -10~55°C (14 to 131°F).
- Lock’s surface temperature: Current temperature ±20% (when power is on).
- Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 3A at 12Vdc).
- Humidity: 0~95% non-condensing.
- Special Zinc finishes for magnet and armature plate.
- Dimensions : 2503 × 124 × 35 mm.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
