ICS, U10002-DSU, Magnet Mini - Monitored + Door Status

ICS, U10002-DSU, Magnet Mini - Monitored + Door Status

  • Brand:ICS
  • Product Code:U10002-DSU
  • Availability:Please Call or Email to Checkout

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


ICS, U10002-DSU, Magnet Mini - Monitored + Door Status

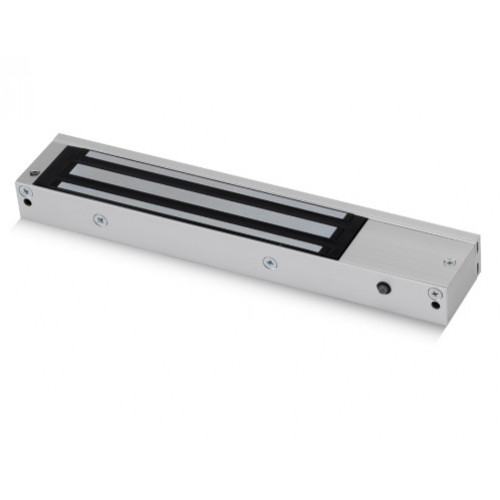

The U10002-DSU is a Magnet Mini - Monitored + Door Status.

Key Features:

  • Operating voltage 12~24Vdc (Selectable)
  • Aluminium housing
  • Monitored
  • Holding force up to 600lbs (272Kg)
  • Electro-less nickel plated armature
  • Fail-Safe
  • Door status: An independent contact that works separately from the magnet to show door status not lock status
  • Status LED: RED and GREEN.

Specifications:

  • Voltage tolerance: ±10%.
  • Current draw: 480mA at 12Vdc, 240mA at 24Vdc (at temperature 20°C).
  • Operating temperature: -10~55°C (14 to 131°F).
  • Lock’s surface temperature: Current temperature ±20% (when power is on).
  • Magnetic bond sensor monitor output remotely monitors the door lock or unlock status. (N.C. Output-Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc).
  • Humidity: 0~95% non-condensing.
  • Aluminium housing, nickel plated armature.
  • Dimensions : 228 × 38 × 27 mm.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
