SSP, EM01DS, Single Slim Maglock - Unmonitored with Door Status Monitoring
- Brand:SSP
- Product Code:EM01DS
- Availability:Please Call or Email Us to Check Availability
SSP, EM01DS, Single Slim Maglock - Unmonitored with Door Status Monitoring

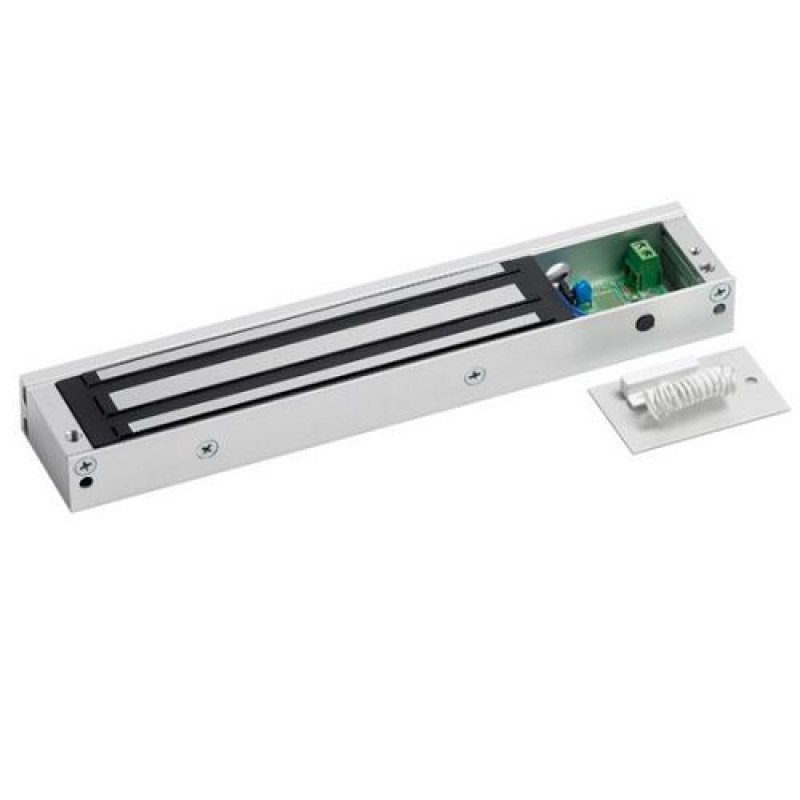

The EM01DS is Slim single unmonitored magnetic lock. Compact design, making it ideal for most indoor applications where 275kg holding force is sufficient. This model includes door status monitoring contacts to monitor the door position (open or closed)
Key Features:
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Slim design
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
- Silver anodised aluminium finish
- Door status monitoring
Specification:
- Holding force: up to 275kg (600lb)
- Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc
- Voltage tolerance: +/- 15%
- Operating temp: -10°C to +55°C
- Humidity: 0-95% non-condensating
- Reed switch door contact
