SSP, EM02DS, Single Slim Maglock - Monitored with Door Status Monitoring

SSP, EM02DS, Single Slim Maglock - Monitored with Door Status Monitoring

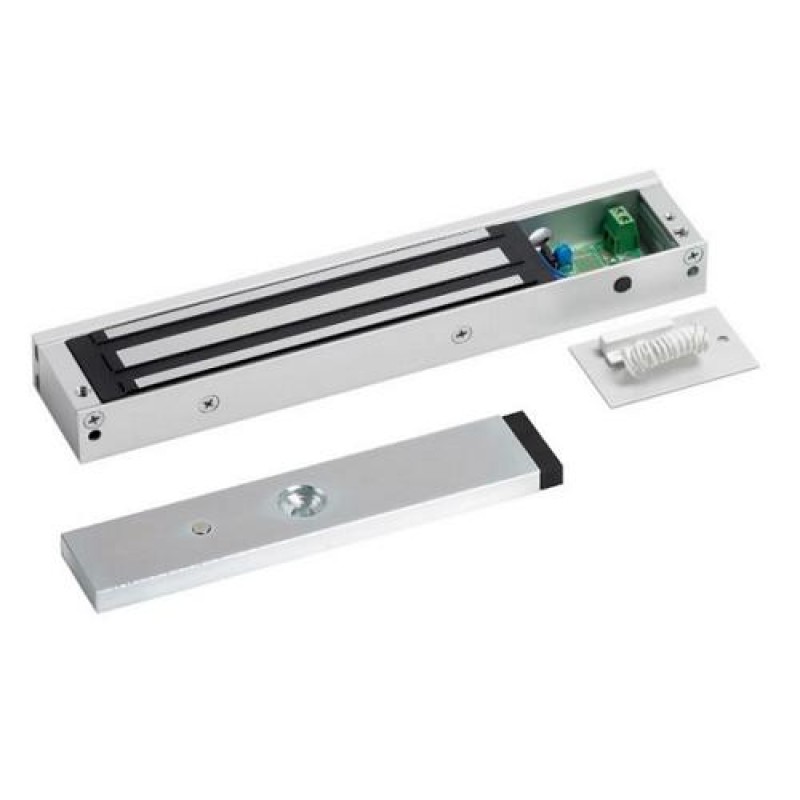

The EM02DS is Slim single lock-monitored magnetic lock. Compact design, making it ideal for most indoor applications where 275kg holding force is sufficient. Monitoring provides LED lock status indication and relay contacts for signaling. This model includes door status monitoring contacts to monitor the door position (open or closed).

Key Features:

• MOV provides spike and surge protection
• Fail-safe operation (power to lock)
• Anti-residual magnetism protection
• Top-plate, armature-plate and fixings included
• Slim design
• Dual voltage 12Vdc or 24Vdc (selectable)
• Surface mount
• Silver anodised aluminium finish
• Lock monitoring
• Door status monitoring

Specification:

• Holding force: up to 275kg (600lb)
• Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc
• Voltage tolerance: +/- 15%
• Operating temp: -10°C to +55°C
• Humidity: 0-95% non-condensating
• Red/Green LED indicator
• Relay: COM/NO/NC (1A@24Vdc)
• Reed switch door contact
