SSP, EM04DS, Double Slim Maglock - Unmonitored with Door Status Monitoring
- Brand:SSP
- Product Code:EM04DS
- Availability:Please Call or Email Us to Check Availability

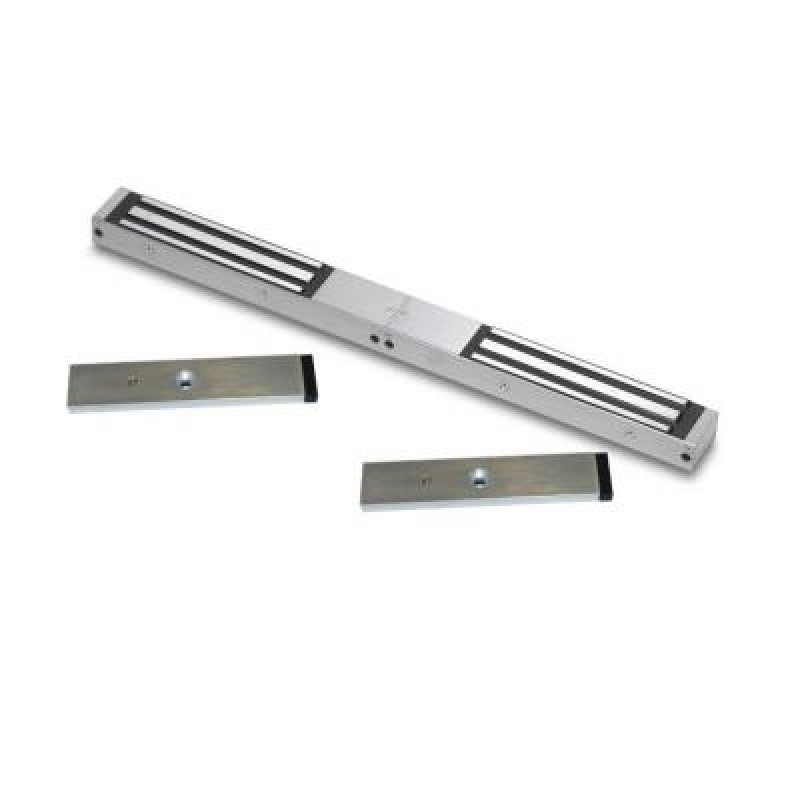

SSP, EM04DS, Double Slim Maglock - Unmonitored with Door Status Monitoring
The EM04DS is Slim unmonitored, double magnetic lock for double doors. Compact design making it ideal for most indoor applications where 275kg holding force is sufficient. This model includes door status monitoring contacts to monitor each door position (open or closed).
Key Features:
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Slim design
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
- Silver anodized aluminium finish
- Door status monitoring
Specification:
- Holding force: up to 275kg (600lb) per side
- Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc per side
- Voltage tolerance: +/- 15%
- Operating temp: -10°C to +55°C
- Humidity: 0-95% non-condensating
- Reed switch door contact (one per side)
