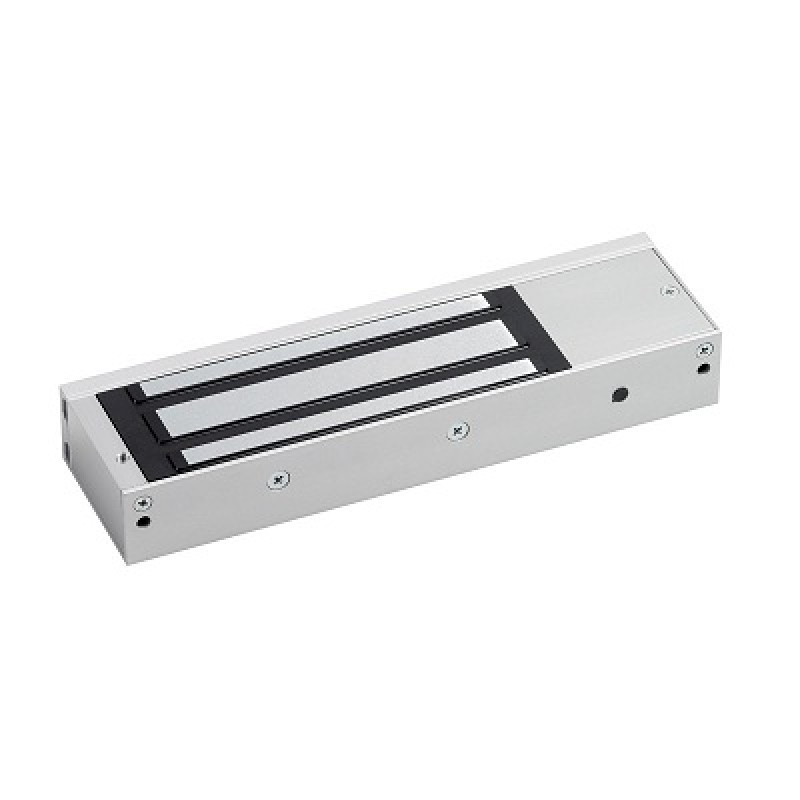

SSP, EM10DS, Single Standard Maglock, Unmonitored w/ Door Status Monitoring

SSP, EM10DS, Single Standard Maglock, Unmonitored w/ Door Status Monitoring

  • Brand:SSP
  • Product Code:EM10DS
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


SSP, EM10DS, Single Standard Maglock, Unmonitored w/ Door Status Monitoring

The EM10DS Standard single Unmonitored Magnetic lock, designed for Indoor applications where 545kg holding force is required. This Model includes Door status Monitoring contacts to Monitor the Door position (open or closed).

Key Features:

  • MOV provides Spike and Surge protection
  • Fail-safe Operation (power to lock)
  • Anti-residual Magnetism Protection
  • Top-plate, Armature-plate and Fixings included
  • Dual Voltage 12Vdc or 24Vdc (selectable)
  • Surface Mount
  • Silver Anodised Aluminium finish
  • Door Status Monitoring

Technical Specification:

  • Holding Force: up to 545kg (1200lb)
  • Current Draw: 500mA @ 12Vdc/250mA @ 24Vdc
  • Voltage Tolerance: +/- 15%
  • Operating Temp: -10°C to +55°C
  • Humidity: 0-95% Non-condensating
  • Reed Switch Door contact
