SSP, EM30, Single Standard Maglock, Double Monitored

SSP, EM30, Single Standard Maglock, Double Monitored

  • Brand:SSP
  • Product Code:EM30
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

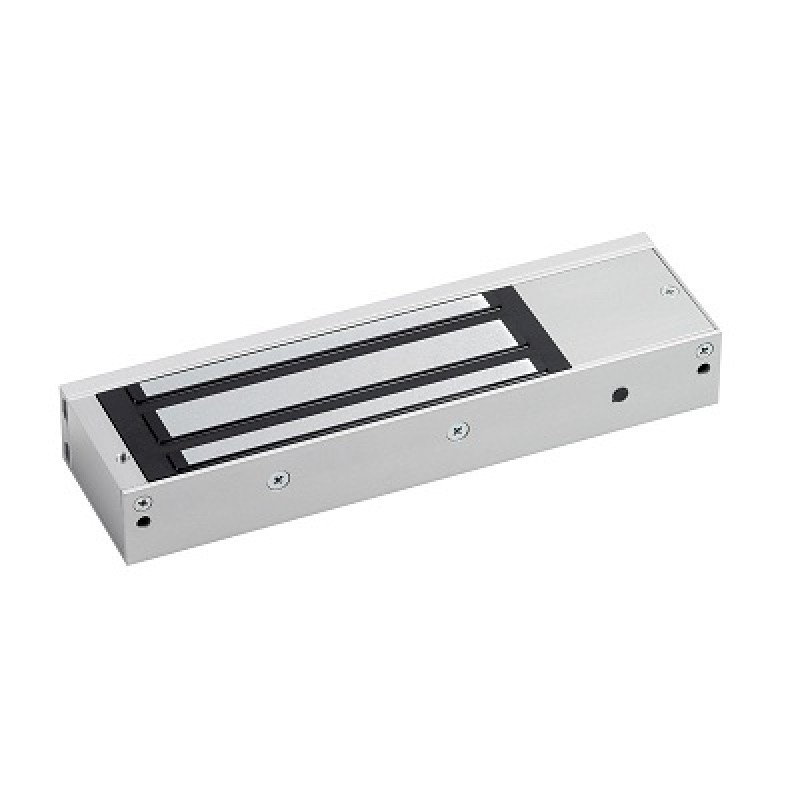

SSP, EM30, Single Standard Maglock, Double Monitored

Standard single monitored magnetic lock, designed for indoor applications where 545kg holding force is required. Monitoring provides LED lock status indication and two separate relay contact-sets for signalling.

Key Features:

  • MOV provides spike and surge protection
  • Fail-safe operation (power to lock)
  • Anti-residual magnetism protection
  • Top-plate, armature-plate and fixings included
  • Dual voltage 12Vdc or 24Vdc (selectable)
  • Surface mount
  • Silver anodised aluminium finish
  • Lock monitoring

Technical Specification:

  • Holding force: up to 545kg (1200lb)
  • Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc
  • Voltage tolerance: +/- 15%
  • Operating temp: -10°C to +55°C
  • Humidity: 0-95% non-condensating
  • Red/Green LED indicator
  • 2 Relays each with: COM/NO/NC (1A@24Vdc)
