SSP, EM750R, Architectural Midi Maglock with Radius Ends

SSP, EM750R, Architectural Midi Maglock with Radius Ends

  • Brand:SSP
  • Product Code:EM750R
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product

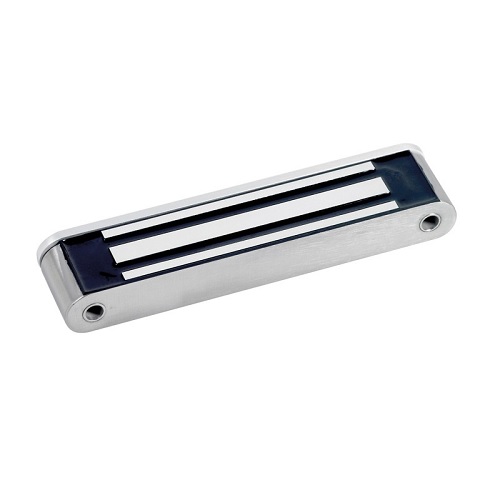

SSP, EM750R, Architectural Midi Maglock with Radius Ends

The EM750R magnetic lock is totally sealed in an epoxy sealed stainless steel case for water-resistant and vandal-resistant purpose. Offers up to 800lb holding force. It can be applied with access control.

Key Features:

  • Lock monitored
  • Weatherproof
  • Current consumption 350mAmp @ 12Vdc
  • Up to 340kg holding force
  • Surface mount
  • Stainless steel
  • Top plate, armature and fixings included
  • Radius ends

Specifications:

  • Voltage Tolerance: +/-15%
  • Current Draw: 340mA@12Vdc
  • Magnetic bond sensor monitor output (00R) (SPDT RATED 0.5A@20VDC
  • Operating Temperature: -10~55C (14~131F)
  • Holding Force Up to 800lbs (363kg)
  • Dimensions: Magnet (L)230. (W)46. (D)30mm, Armature: (L)185. (W)45. (D)14.mm
  • Epoxy Potting Compound: E87252 (S), UL94V-0

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
