SSP, PH800, 2500mm Pull Handle Incorp 2 Slim Maglocks and Armature Plates

SSP, PH800, 2500mm Pull Handle Incorporating 2 Slim Maglocks and Armature Plates

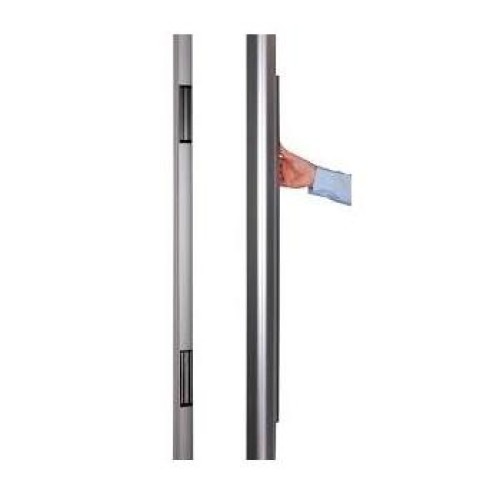

The PH800 is 2500mm Vertical Pull Handle incorporating 2 slim Maglocks and Armature plates. Provides a sturdy, modern design handle with concealed maglocks. Ideal for office environments.

Key Features:

• Fail Safe Operation (power to lock)
• Dual Voltage 12Vdc or 24Vdc (selectable)
• Modern Design
• Satin Anodised Aluminium finish
• Concealed wiring
• Armature Fitted inside the Handle,improving appearance
• 2 Integrated Magnets and Armature plates (included)
• Lock Monitoring

Technical Information:

• Up to 275kg (600lb) holding force (per magnet)
• Length: 2500mm (can be cut to required length)
Total Current draw:
• 1A @ 12Vdc
• 500mA @ 24Vdc
• Monitoring relay:
  • COM/NO/NC (1A @ 24Vdc)
