Takex (PB-10NS) Miniature Single IR Beam
- Brand:Takex
- Product Code:PB-10NS
- Availability:Please Call or Email to Checkout
Your shopping cart is empty!

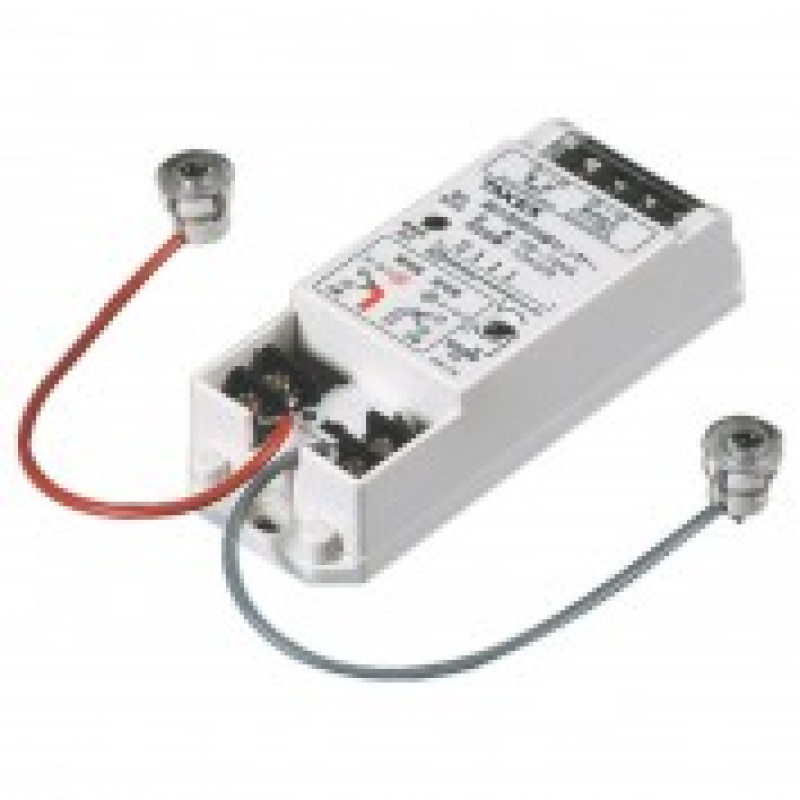

Takex (PB-10NS) Miniature Single IR Beam: Remote Heads (1 x Transmitter And 1 x Receiver), Each On 10m Cable. Maximum 10m Range Between Tx and Rx. Includes Control Unit. Internal Use Only. 12/24VDC
Miniaturised Photoelectric Beam Sensor ideal for covert applications, eg. ATM machine, motor driven shutter, window or corridor.
For distances up to 10m (33ft) indoor.
Specifications:
Model | PB-10NS |
Description | Photoelectric Beam Sensor |
Detection system | Near infrared TR/RE type |
Protection distance | 33ft. (10m) or less |
Supply voltage | DC10V to DC30V (Non-polarity) |
Current consumption | 45mA or less |
Alarm output | Dry contact relay : 30V (AC/DC) 0.3A N/O, N/C selectable Contact action : Interruption time+Delay time (approx. 1 sec.) |
Response time | Detect 100msec. or more of beam interruption |
Operation LED | Lights Red during detection (beam is interrupted) |
Ambient temperature range | -13F to +131F (-25C to +55C) (without condensation or frozen) |
Appearance | Sensor : PC resin (clear) Control box : ABS resin (white) |
Weight | Sensor : 4.2oz (120g) × 2 Control box : 3.3oz (95g) |
For more details, pelase refer with our attached datasheet.
