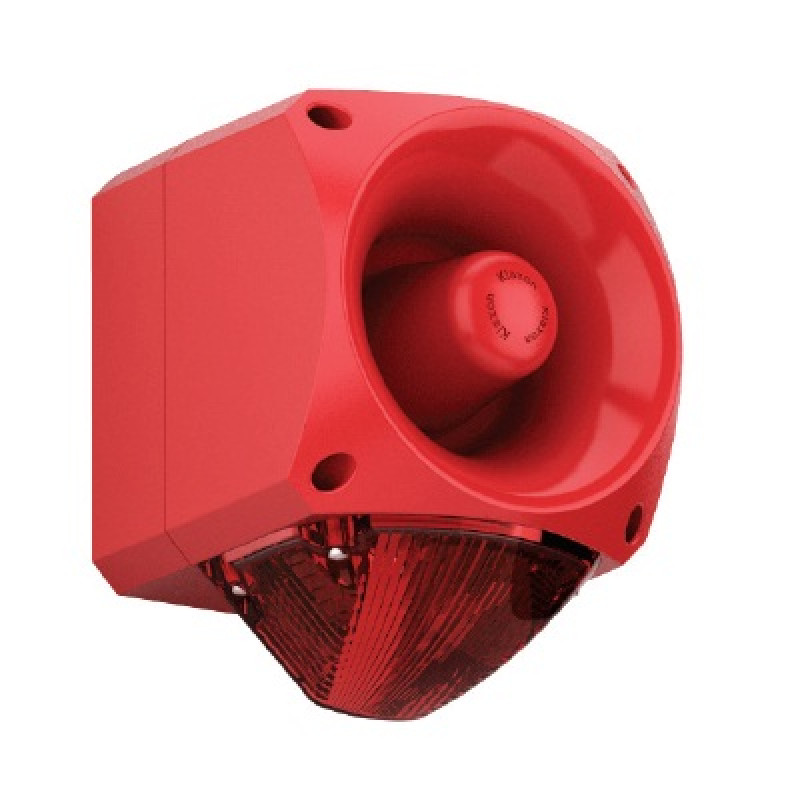

PNC-0001(18-980543), Nexus 105 Sounder/Beacon Red Lens Xenon,10-60 V

Klaxon, Nexus 105 Sounder/Beacon Red Lens - Xenon (18-980543)

High output sounder beacons certified to EN54.

Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners avoiding the need to screw up four individual screws thus enabling faster installation and accurate seal compression for weatherproofing.

The Nexus Sounder Beacon is available with a high efficiency LED or high output xenon beacon. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 110dB and 120dB units, as well as AC variants, are also available.

Features:

• 5J xenon or high efficiency LED beacon option
• Quarter turn fasteners for ease of installation
• First-fix, wire to base technology
• IP66 rated
• Three alarm stages
• Low in-rush current (LED only)
• Static/flashing mode (LED only)
• Volume control for greater flexibility - 20dB
• 64 tones
• Voltage 10-60V DC

Specifications:

• Lens Colour: Red
• Beacon Type: Xenon
• Beacon Current: 330mA@24V DC
• 105d Sounder Current: 8-40mA
• 110d Sounder Current: 10-50mA
• 120d Sounder Current: 120-550mA

For more details, please refer with our attached datasheet.
