PNC-0062(18-980674), Nexus 110 Sounder/Beacon Red LED LVAC,24-48 VAC

Klaxon, 18-980674, Nexus 110 Sounder/Beacon Red LED - LVAC

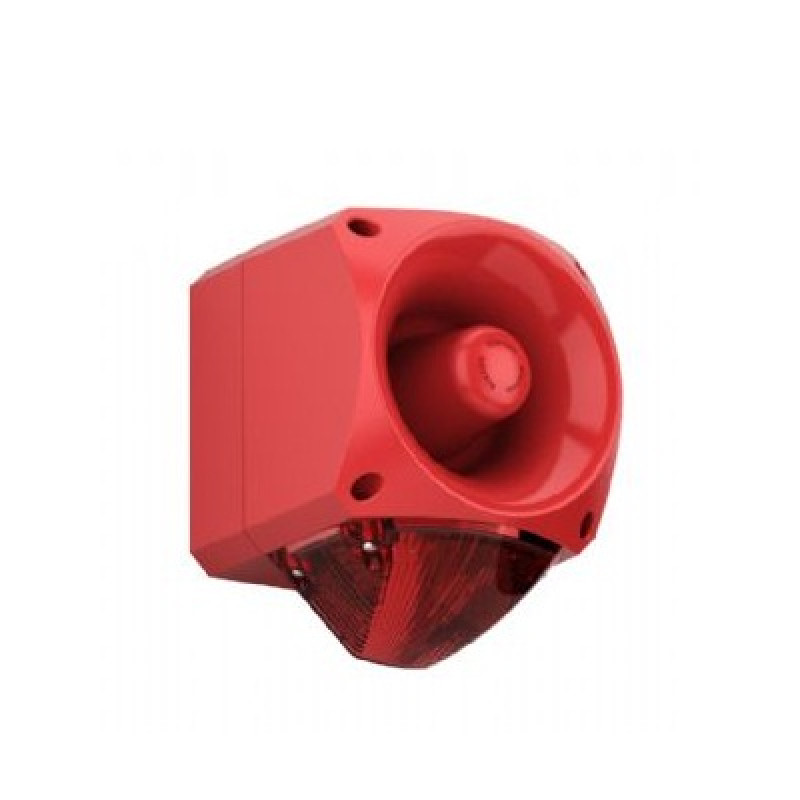

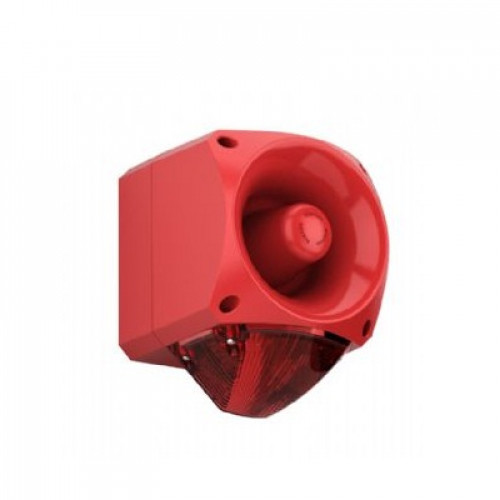

The Nexus 110 is a high output, sounder beacon designed for industrial applications.

 Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners enabling faster installation and accurate seal compression for weatherproofing.

The combination of powerful sounder and high output beacon ensures a very effective audio-visual signal

Features:

• High sound output: 116dB (max); 110dB typical
• Quarter turn fasteners for ease of installation
• 110/230V AC and 24 - 48V AC options
• First-fix, wire to base technology
• 5J xenon and LED beacon (for low voltage option)
• IP66 rated
• Volume control for greater flexibility
• 64 tones
• Sounder and beacon can be controlled separately

Specifications:

• Lens Colour: Red
• Beacon Type: LED
• Audibility at 1m: 116dB (A)
• Tones: 64
• Voltage: 24-48V AC
• Sounder Current: 30-100mA

For more details, please refer with our attached datasheet.
