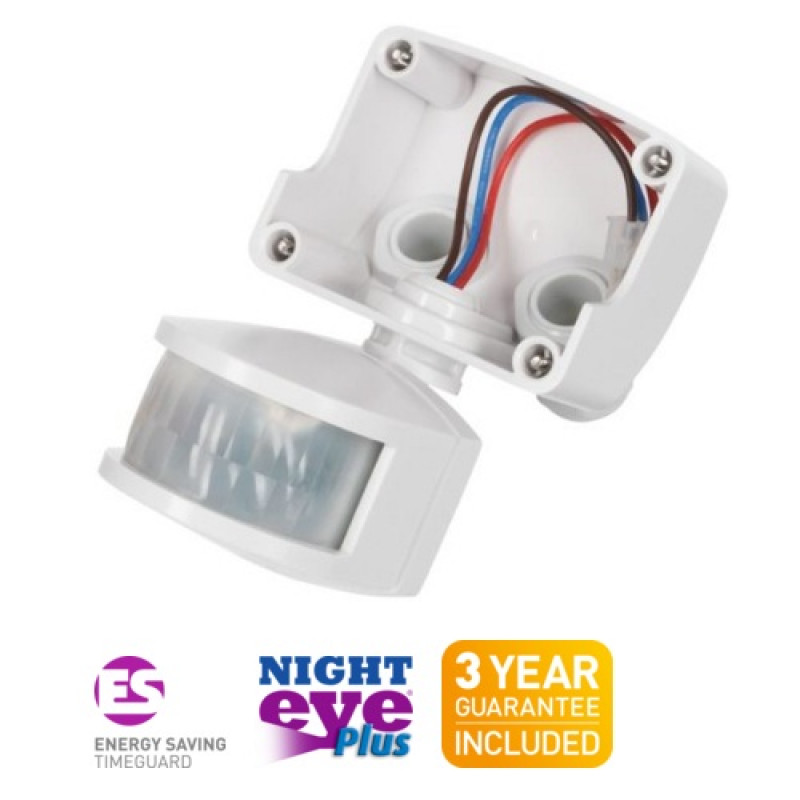

LEDPROSLWH, Dedicated PIR Detector for LEDPRO Floodlights - White
- Brand:Timeguard
- Product Code:LEDPROSLWH
- Availability:Please Call or Email Us to Check Availability
LEDPROSLWH, Dedicated PIR Detector for LEDPRO Floodlights - White
The Plug & Play IP55 PIR attachment (models LEDPROSLB/LEDPROSLWH) simply replaces the terminal cover and plugs into the LEDPRO Floodlight offering a 140W LED PIR with a 180° 12m detection range fitting all variants/wattages in the range. Features include tilt and rotate adjustable head, timed on adjustable control and manual override. A truly professional range offering mix and match options to cover all type of installations.
- Dedicated 140W LED PIR for use with Timeguard LEDPRO floodlights.
- Maximum Switchable Load: LED lamp –140W; Halogen lamp – 1000W; CFL – 200W; Fluorescent tube w/o PF correction – 500W.
- Operating Temperature -20°C to +40°C.
- Fits ALL Timeguard LEDPRO floodlights.
- Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary.
- Installer friendly captive terminal cover screws 2x cable entries suitable for PG11 gland(glands not supplied).
- 12 metre 180° detection.
- Tilt and rotate adjustable head for accurate reliable detection.
- 3 seconds – 18 minutes timed duration (adjustable).
- Photocell sensor (Adjustable) and manual override function.
- Complete with masking kit.
- IP55 weatherproof rating.
- UK and European registered design.
- Registered Community Design Number: 003316249-0002.
- UK Registered Design Number: 5004077.
SPECIFICATION:
| Operating Voltage | 230V AC |
|---|---|
| Lamp Load (Max) | 50W LED |
| Weatherproof Rating | IP55 |
| Detection Range (Max) Metres | 12 |
| Angle of Detection | 180º |
| Light ON Time After Last Detection (Adjustable) | 3 Seconds (Min), 18 Minutes (Max) |
| Permanent ON Facility | Electronic |
| Adjustable Light Level Control | Yes |
| EC Directives | Conforms to Latest Directives |
| Overall Dimensions (mm) | Height 91, Width 78, Depth 73 |
