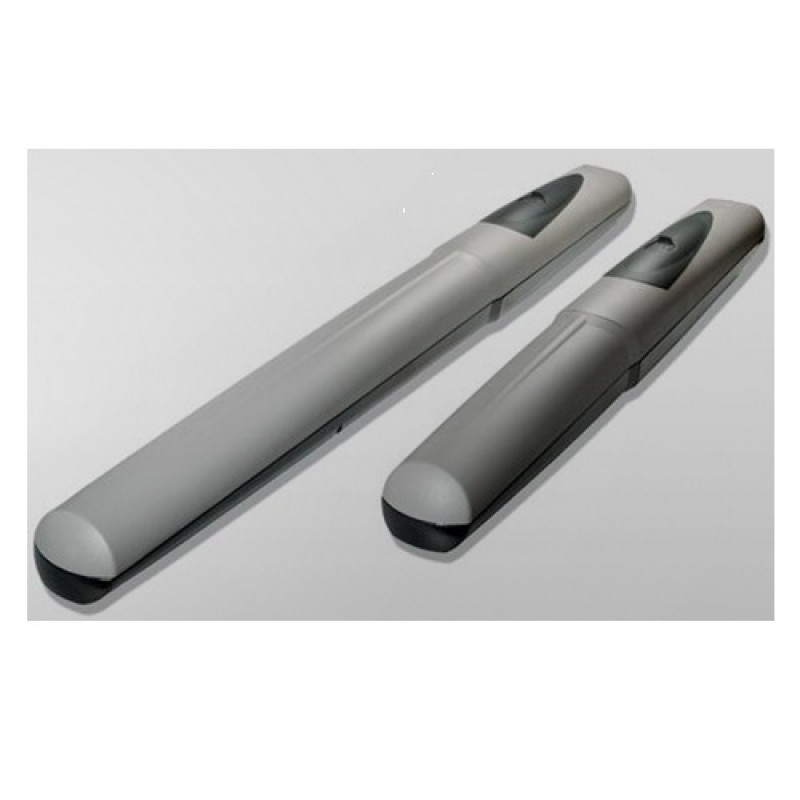

CAME (AX302304) AXO 230V Self-locking Swing Gate Motor - 3m Leaf

CAME (AX302304) AXO 230V Self-locking Swing Gate Motor - 3m Leaf

Axo is the new electromechanical operator designed for long life and utmost safety even with very large gates. The impact force developed by the gate movement conforms to current European standards.The gearmotor has bearing semi-shells in die-cast aluminium of excellent quality and silent running. Axo is equipped with adjustable mechanical stop to memorize the gate run. Available also in the 24V version with the simplified connection system with only one single three-wired cable and with the innovative 230V technology, which gives very efficient and simple control of slowing down movements.

• Tested in compliance to parameter established by the current norms.
• The 24 V versions can also operate during power outages.
• Available in both reversible and self-locking versions.
• The worm screw is always protected thanks to its dedicated cover.
• The 24 V versions have a simplified connection system with a single three-conductor cable for managing both motor and encoder.
• Encoder technology for managing slow-downs.
• Adjustable mechanical stops for memorising gate run.
• Supporting diecast aluminium half-shells.

Customised solution? With Axo you have made the right choice
Ideal for swing gates of different sizes: 2 to 7 m in length per leaf. Quick, easy installation even where space is limited by the presence of walls or fences.

Benefits

• For installers: easy connection with only one cable with three wires (24 V version); EN Tested technology for easy system certification in accordance with European standards.
• For users: fully adjustable gate run and slowdown management, ensuring safety and reliability.

The customised choice
The Axo range is characterised by the 6 versions available, with different levels of performance and power, designed to meet all requirements in terms of application and use, to create a system that is always “customised”.

No more blackouts
Axo\'s 24 V control board automatically detects any power failure and activates emergency operation with the backup batteries (optional), to open and close the gate in every situation.

Technical Specifications:

• IP protection rating: IP44
• Power supply (50/60 Hz): 230 AC
• Motor power supply (V): 230 A.C. 50/60 Hz
• Current draw (A): 1.5
• Power (W): 175
• Opening time at 90° (s): 20
• Duty cycle (%): 50
• Thrust  (N): 500 ÷ 4500
• Motor thermo protection (°C): 150 / 302

Note: 24V D.C. external operators and control panel is also available.

For more details, please refer with our attached Brochure.

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
