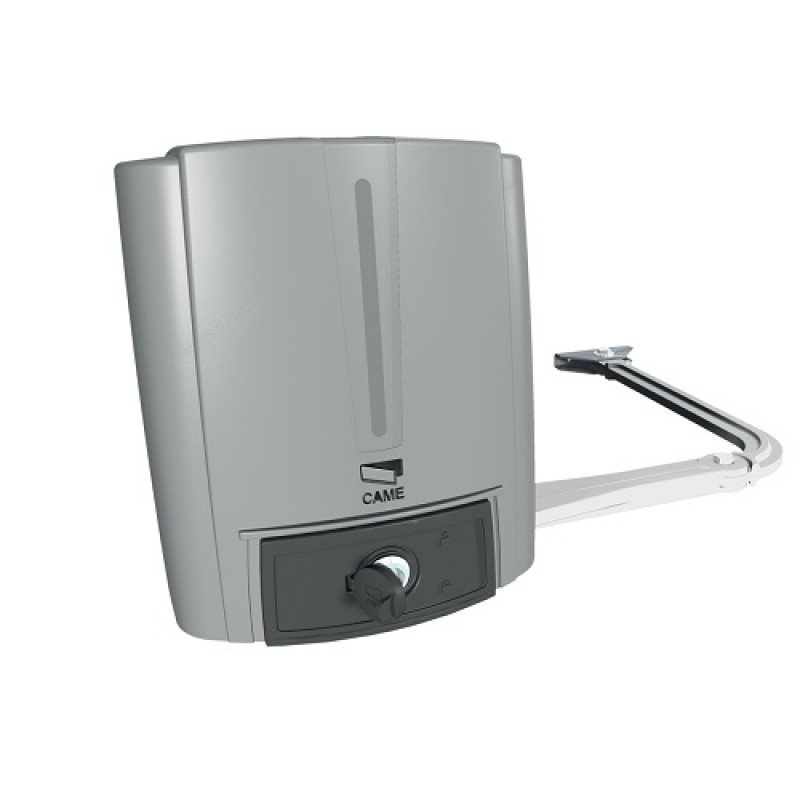

CAME (FA70230) Fast 230V Motor with Out Control Panel

CAME (FA70230) Fast 230V Motor with Out Control Panel

Irreversible gearmotor with folding drive arm for swing gates measuring up to 2.3 m per leaf.

Key Features:

• Quick and easy installation
• User-friendly release lever for manually opening the gate.
• Electronic board integrated in the FA70230CB version and in the FA7024CB version.
• Can operate in emergency mode during power outages.
• Simplified connection with a single 3-wire cable for motor and encoder management.
• Control board, with separate terminal board and display, for simpler installing and diagnosing. Save up to 250 different users.
• Self-diagnosing safety devices – whether wireless or not.
• On-board Rolling Code and (Twin) Key Code radio-frequency decoding.
• Set up to run CAME KEY and to connect to the cloud via CAME Connect.
• Management of wireless security accessories for the RIO System 2.0 series
• Used to directly manage CAME key pads using the R800 board or connect CAME transponder selectors using the R700 accessory

Technical Specification:

• Protection rating (IP): 54
• Power supply (V - 50/60 Hz): 230 AC
• Power supply to motor (V): 230 AC
• Absorption (A): 1,4
• Power (W): 160
• Maneuvering time at 90° (s): 15
• Duty/cycle (%): 30
• Operating temperature (°C): -20 ÷ +55
• Motor’s heat protection (°C): 150

Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
